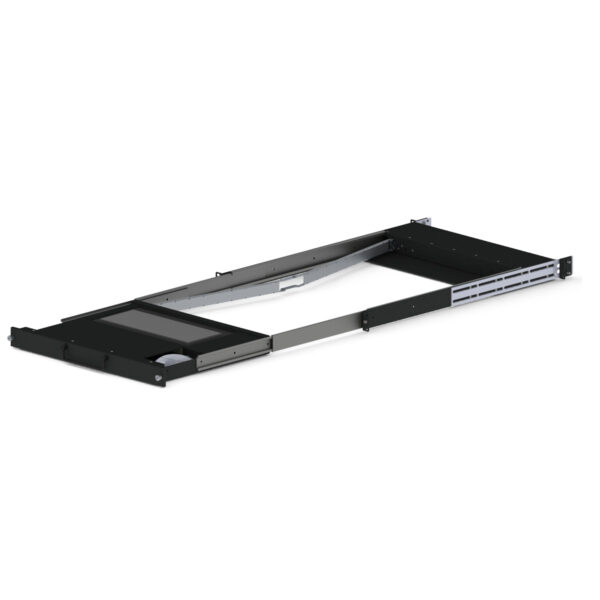

RDKB-T24

The “rack drawer keyboard” T24 drawer is designed with all of our transit case options including: straight in installation, upgraded rugged rear arms, mill spec rails, cage style cable guide system, and thumb screw front face option. The T24 can support all of our  KVM switches, full size keyboards, and full size mouse or full size joystick add on.

We offer the type 1 tray inserts that  support our “V” keyboard 103 with number keypad or “S” Keyboard with 83 full-size keys and your choice of wired or wireless mouse. The storage area underneath the wrist rest is ideal for storing product or an iPod. You can also configure the front face with our audio options.

Our Type 2 tray insets support most of our universal keyboards and is customizable with the IP-65 keyboards and 30 mm trackballs and joystick
options to the right or left of the keyboard.

The T24 is perfectly paired with our PDD3-F24 Multi Head Hydra Series or our PDD2-T24 as they are both designed for Transit Case applications and are 24″ in depth.

Request Data Sheet
Request A Quote loading
Category: category 1
  • Description

Description

  • Features

    • Lightweight All Aluminum Construction
    • Customizable Modular Design
    • Fits cabinets depth from 24-32” Depth
    • Full KVM Options
    • Flexible Keyboard & Pointer Options
    • Quarter Turn Locking Power Connector

    • Transit Case Ready
    • Telescoping Transit Case Arms
    • Cage Style Cable Management System
    • Power Brick Mounting Option
    • Built-In Steel Friction Slide Rails

LCD OPTIONS

STUFF ABOUT THE LCD OPTION CONTENT HERE

LCD OPTION 1



  • spec


VIDEO CONTROLLERS


Explanation of video controllers

VIDEO CONTROLLER OPTION 1

IMAGE HERE


  • Spec

VIDEO CONTROLLER OPTION 2

IMAGE HERE


  • spec


Key Board Mouse

Explanation of keyboard and mouse

Keyboard Mouse Option 1

IMAGE HERE


  • STUFF ABOUT MOUSE  1


Video I/O and KVM Backs


Bh: Hybrid Stand Alone PS/2/USB 8 Port KVM switch with Cascading Port

KVM-Bh


Hybrid Stand Alone PS/2/USB 8 Port KVM switch with Cascading Port. Can be cascaded using a Bh or Ch Integrated RD1U Drawer or Legacy B, C, I, J KVM’s

Ch: Hybrid Stand Alone PS/2/USB 16 Port KVM switch with Cascading Port

Ch


Hybrid Stand Alone PS/2/USB 16 Port KVM switch with Cascading Port. Can be cascaded using a Bh or Ch Integrated RD1U Drawer or Legacy B, C, I, J KVM

E: Economy 8 Port KVMS (Low Cost PS2/DB15 Connectors)

E


This Back is our Low Cost Entry Level Integrated 8 port KVM (KVMS-8800A) Switch. But don’t be fooled, it delivers plenty of power with an OSD menu for up to 4 users. Password protection, legacy connection (DB15, PS/2 Mouse/Keyboard), and Hot Key functionality, all at an affordable price.

F:8 Port Rose KVM switch with PS2 Connectors

F


This Back is our Vista Rose Integrated 8 port KVM Switch. With optional OSD menu. Password protection, legacy connection (DB15, PS/2 Mouse/Keyboard), and Hot Key functionality, all at an affordable price.

G:4 Port DVI-D KVMS USB key/Mouse, +Audio

G


First generation DVI-D Media switch BACK, gives complete control over 4 CPU’s DVI-D Video, USB keyboard/mouse, speaker, microphone, and even 2 USB devices (Printers, Scanners, Etc.). With a few hot key commands, you won’t believe how easy it is to jump from one multi-media PC to the next.

K:4 Port aRGB KVMS USB or PS2 Key/Mouse, +Audio

K


KVMS-RGBA4 – Our new 4-port KVM and Peripheral Sharing Switch brings extra value to conventional KVM switches by offering USB peripheral sharing capabilities, audio and microphone support, and multi-platform support for Mac, Sun, USB and PS/2. Up to 127 different USB devices can be daisy chained from this KVM switch. Sharing speakers and a microphone also offers extra value and convenience for the users. USB and KVM technology together makes cross-platform management easy. A single USB console can control PCs, Macs, or even Sun workstations, and share peripherals and audio devices between the computers. Any USB-enabled computers, using any USB- compatible operating system, can benefit from the efficiency, expense reduction and convenience of this switch.

L: 8 Port RJ45 Connector KVM switch With Cascade Ports

L


KVMS-08C Switches are control units that allow access to up to 8 computers from a single KVM (keyboard, monitor, and mouse) console. They feature RJ-45 connectors and Cat 5 cable to link to the computers. Combined with Auto Signal Compensation (ASC) signals can travel up to 40 meters and still maintain high video resolution. Utilizing PS/2 and USB KVM Adapter Cables for the final linkup. They also permit any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

M: 16 Port RJ45 Connector KVM switch with Cascade Ports

M


KVMS-16C Switches are control units that allow access to up to 16 computers from a single KVM (keyboard, moni- tor, and mouse) console. They feature RJ-45 connectors and Cat 5 cable to link to the computers. Combined with Auto Signal Compensation (ASC) signals can travel up to 40 meters and still maintain high video resolution. Utilizing PS/2 and USB KVM Adapter Cables for the final linkup. They also permit any combination of PCs, Macs, Sun com- puters, and serial devices to coexist on the installation.

N: 4Port DB25 Rose SPB-4UB KVM switch USB or PS2 Integrated management

M


Our 4 port DB25 Rose SPB-4UB KVM switch with USB or PS2 integrated management.

O: 8 Port DVI/HDMI Connector KVM with USB Keyboard and Mouse Support

OT-KVM-Back1


Z1: Hybrid

K


Z2: Hybrid

K


Z5: Hybrid

K



FRONT FACE


Explanation of front face

FRONT FACE option 1

IMAGE HERE


  • STUFF FRONT FACE 1


LENS AND PANELS


Explanation of lens and panels

Lens and panels option 1

IMAGE HERE


  • STUFF about Lens and Panel 1


Other options


Explanation of other options

other option 1

IMAGE HERE


  • text about other option 1


  • Specifications

    Dimensions: x.x” (2U) x xx” W x xx” D
    Weight: xx LBs Power Consumption: xx
    Values are approximate and vary based on configuration

Downloads

Datasheet F20172W
