Transit Case Rack Drawer 1 U Clamshell Design, 17″ Depth Short No KVM Switch Options

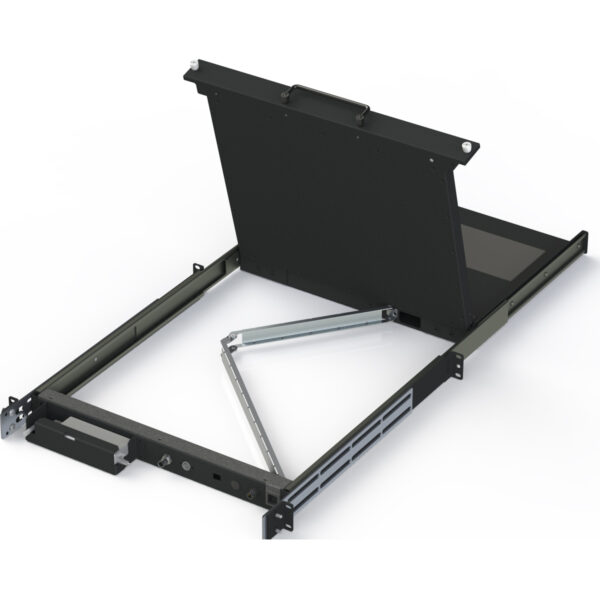

When short depth and light weight are strict guidelines, the CAT17 Series are the perfect fit. This series will fit into a 17” transit case, weighs in at a mere 17 lbs. and uses a pass-through cabling system. The RD1U-C Class is available with multiple keyboard, controller and monitor options.

Request Data Sheet







Category:

Description

  • Features

    • Clamshell Design – Compact & Rugged
    • Ultra Short Depth
    • Customizable Modular Design
    • LED Backlit LCDs
    • Fits cabinets depth from 17-25” Depth
    • Flexible Keyboard & Pointer Options
    • Quarter Turn Locking Power Connector

    • Transit Case Ready

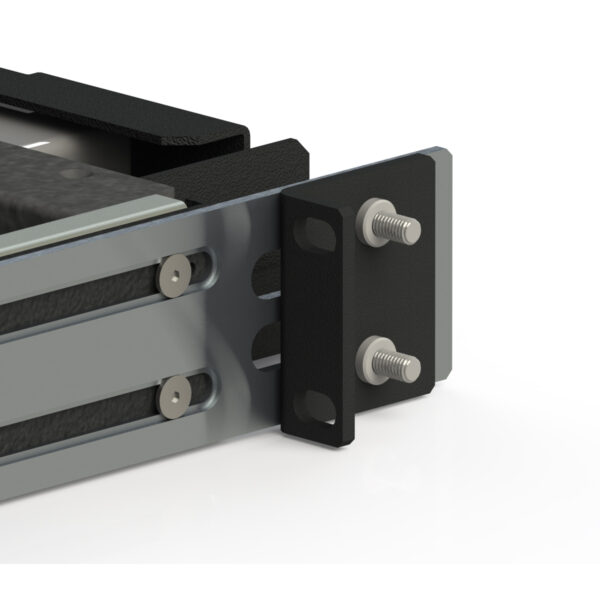

    • Telescoping Transit Case Arms

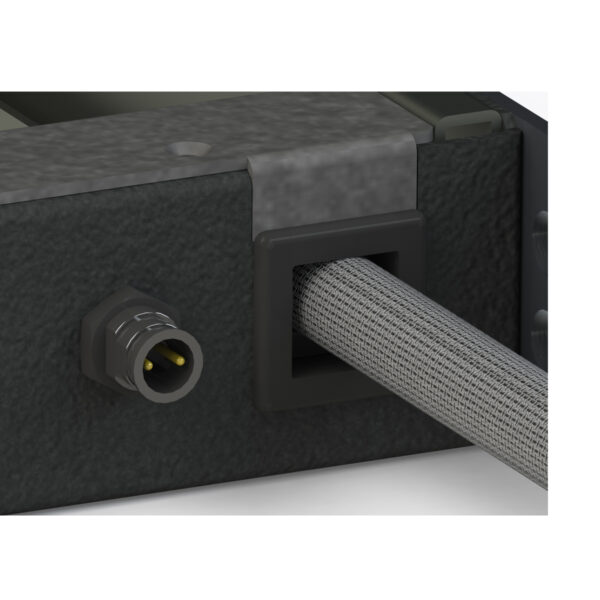

    • Cage Style Cable Management System

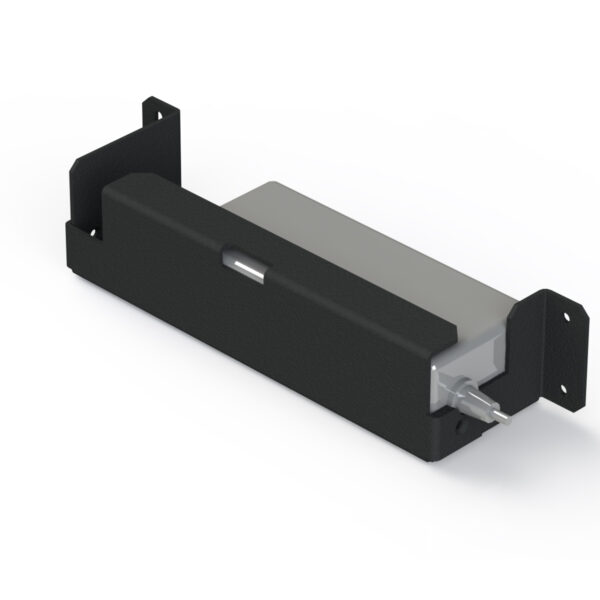

    • Power Brick Mounting Option
    • Rugged All Aluminum Construction

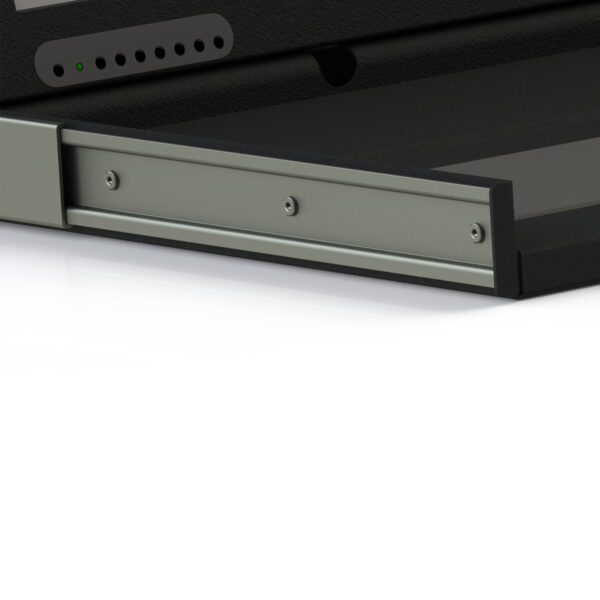

    • Built-In Steel Friction Slide Rails

LCD OPTIONS

15L: LED XGA 1024 x 768 (Max Res)

15L_ud_arrow


  • Backlight: 400 NITS, LED
  • Operational Temp: -20* to 70* C
  • Viewing Angles: 85-85-85-85
  • Contrast Ratio: 700:1
  • Response Time: 8ms

17L: LED Backlit, SXGA, 1280 x 1024 (Max Res)

17L_UD_arrows


  • Backlight: 350 NITS, LED
  • Operational Temp: -30* to 85* C
  • Viewing Angles: 85-85-80-80
  • Contrast Ratio: 1000:1
  • Response Time: 5ms

17HB: High Bright, SXGA, 1280 x 1024 (Max Res)

17HB_UD_arrows


  • Backlight: 1000+ NITS, LED
  • Operational Temp: -30* to 85* C
  • Viewing Angles: 85-85-80-80
  • Contrast Ratio: 1000:1
  • Response Time: 5ms

173W: LED Backlit, FHD, 1920 x 1080 (Max Res)

173w


  • Backlight: 400 NITS, LED
  • Operational Temp: 0* to 70* C
  • Viewing Angles: 80-80-60-80
  • Contrast Ratio: 600:1
  • Response Time: 40ms

KEYBOARD OPTIONS

Keyboard Data Sheet

A Keyboard: 83 Key Cherry Keyboard w/ Built in 2 button 16mm Optical Trackball

A-Keyboard copy


Cherry 83 key Keyboard with high quality 16 mm integrated trackball and two button pointing device.  Featuring:  Mechanical keys with gold cross point contacts for high-precision key action,  individual key life expectancy approximately 20 million cycles and a MTBF of 134,000 hours.  Multiple language support available.  PS/2 Interface with Optional USB.

O Keyboard: 88 Key Cherry Keyboard w/ 2 Button Touchpad

O-Keyboard copy


Built with mechanical keys with a gold cross point contacts for high-percision key action. Programmable keys with a fast switch-over to numeric block via Fn key. Available with multiple language supper

Qn Keyboard: 97 Key Rugged NEMA4X sealed keyboard 2/ 2 button touchpad and optional backlight

Qn-keyboard


Made of industrial silicone rubber this is a full-sized keyboard with added convenience of a built-in touch pad. Its fully sealed keys, touchpad, and number pad meet NEMA 4X standards to be resistant to dirt, debris and water making in ideal for harsh environments.

KVMs

X: Pass through port

Pass Through Port


All DVI, VGA, HDMI or Display Port cables passed through this hole








VIDEO CONTROLLERS


V18X Mid Range, Embedded, Light Industrial

v18xaligned1


  • Max resolution: 1920 x 1200
  • Input options available: VGA, DVI or HDMI, CVS, YPbPr, Audio

V25X Entry Level, Embedded, Light Industrial

v25x


  • Max Resolution: 1920 x 1200
  • Input Options Available: VGA, DVI or HDMI, Display Port, Audio


Front Face Fixed Configurations


A1: Standard Front Face, with Cam Lock / Pocket Pull Handle

A


Our standard front face with cam lock and a space saving pocket pull handle.

D1: Standard Front Face, with Double Thumb Screw / Pocket Pull Handle

D1iso


Our standard front face with two thumbscrews on either side, with a sleek and space saving pocket pull handle.

Da1: Integrated Audio Front Face, with Double Thumb Screw/ Pocket Pull Handle

Da1


An audio enhanced front face with two thumbscrews and a space saving pocket pull handle.

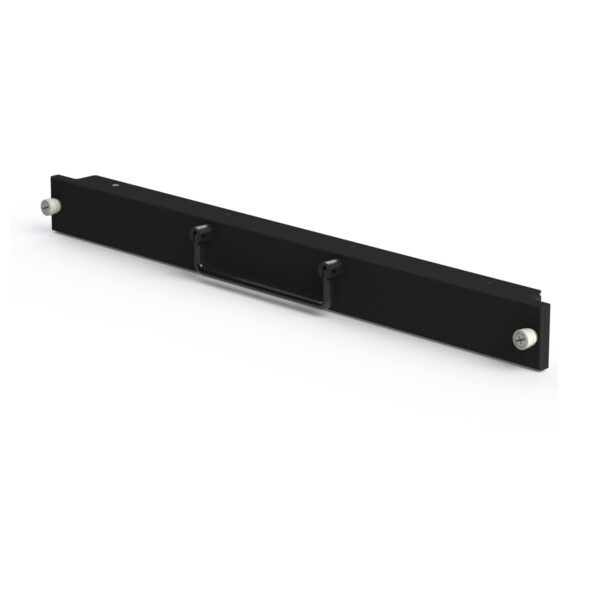

D7: Standard Front Face, with Double Thumb Screw / 5" Flush Collapsible Handle

D7iso


Our standard front face with two thumbscrews, and a 5″ solid collapsible handle that lays flush with the front face.

Da7: Integrated Audio, Double Thumb Screw / 5" Flush Collapsible Handle

Da7


An audio enhanced front face with two thumbscrews, and a 5″ solid collapsible handle that lays flush with the front face.


Mix and Match Front Face And Pull Handle Options


Pick a front face of your choice and a handle to suite your needs.

D: Standard Front Face, with Double Thumb Screw, U-Pick Handle

D


Our standard front face with two thumbscrews and the choice of handle to suite your needs.

Da: Integrated Audio Front Face, With Double Thumb Screw, U-Pick Handle

Da


An audio enhanced version of the standard front face with thumbscrews and the choice of handle to suite your needs.

2: 3" Chrome Wire Pull

handle-2


Compact 3″ chrome plated pull mounted on face of your choice.

3: 4" Chrome Wire Pull

handle-2


4″ chrome plated pull mounted on face of your choice.

4: 6" Chrome Wire Pull

Handle-4


Robust 6″ chrome plated wire pull mounted on face of your choice.

5: 4" Brushed Aluminum Pull

handle-5


Smooth 4″ brushed aluminum pull mounted on face of your choice.

6: 7.5" Stainless Steel Pull

#6-Handle-Iso


Solid 7.5″ stainless steel pull mounted on face of your choice.

8: 5" Collapsible Pull

#8-Handle-Iso


Convenient and sturdy 5″ collapsible pull mounted on face of your choice in a black finish.

9: Heavy Duty Pull (Hydra 21.5" Only)




  • Specifications

    Dimensions: 1.75″ (1U) x 19″ W x 17″ D
    Weight: 17 LBs
    Power Consumption: 35 Watts
    Values are approximate and vary based on configuration
