1U Pop Up Monitor with Split independent Keyboard and Monitor Operations, Limited Keyboard, KVM, and I/O Options

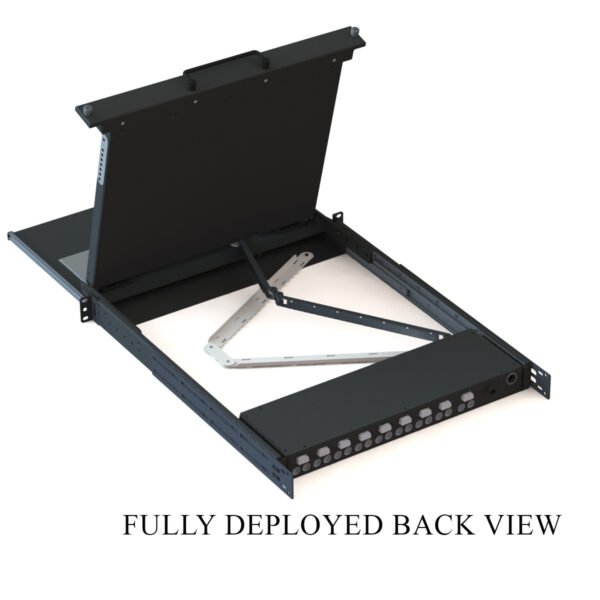

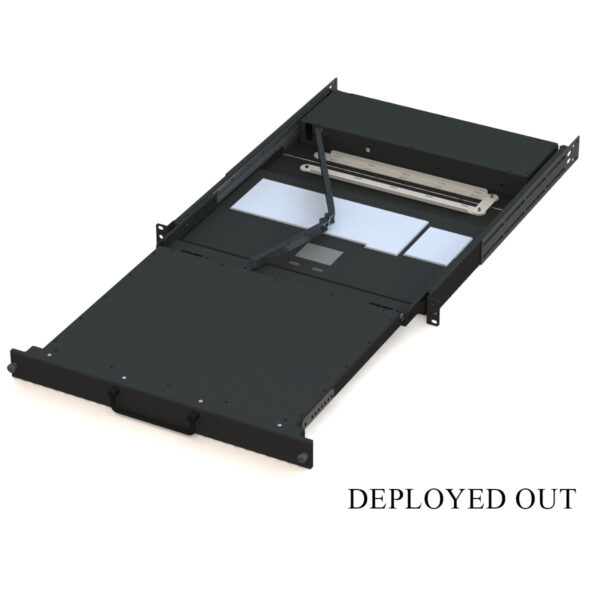

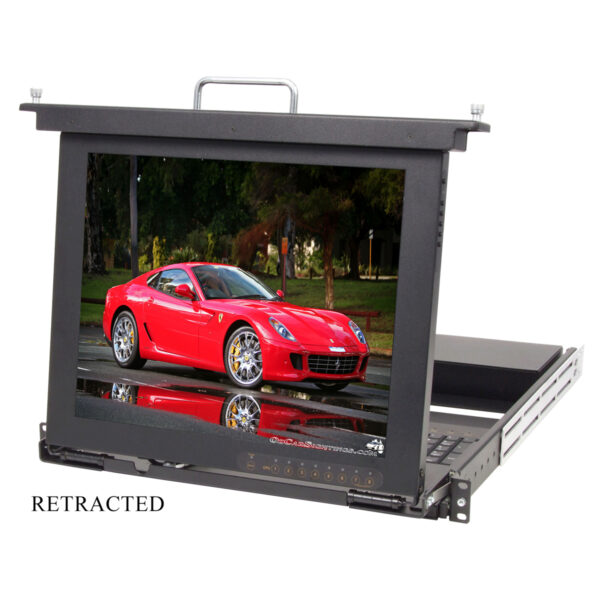

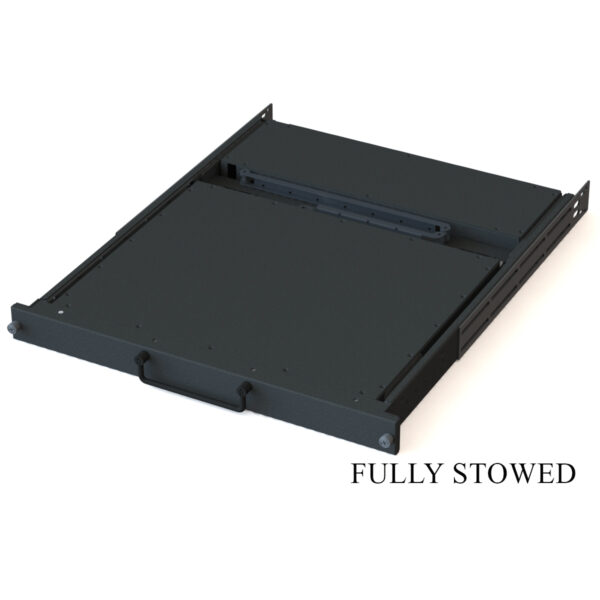

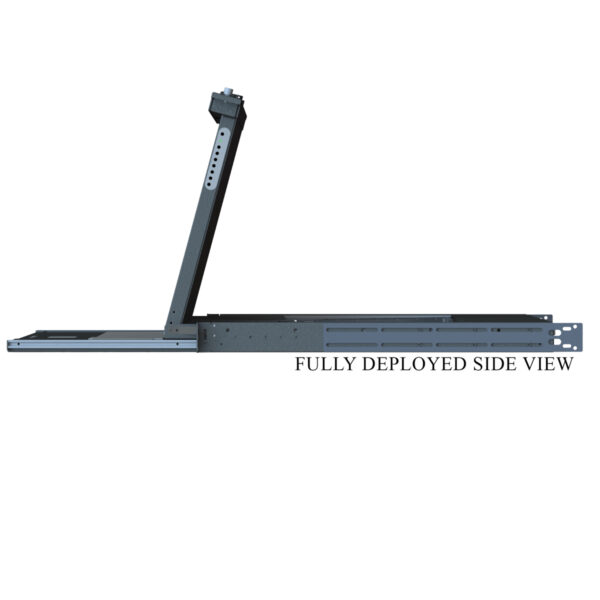

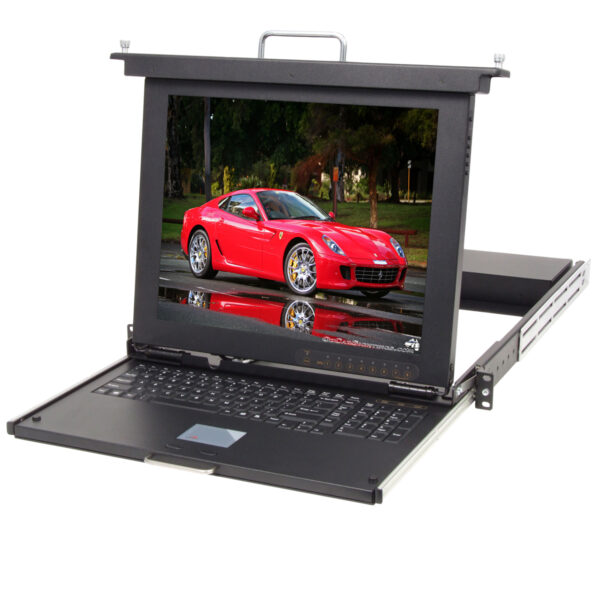

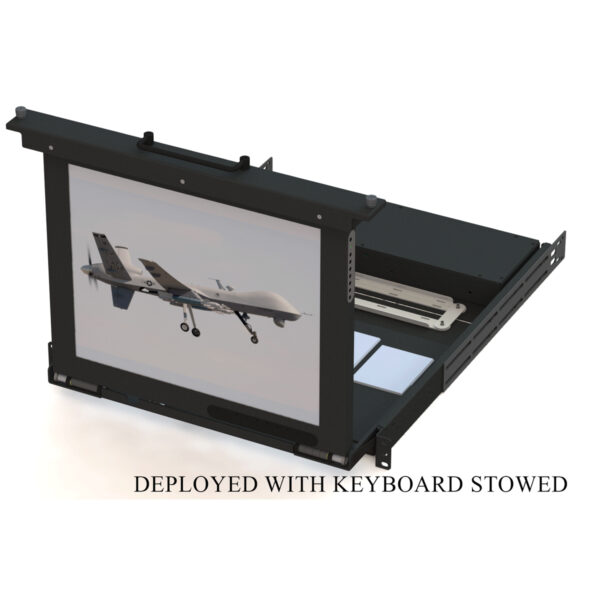

The RD1U – S20XX Series is an all aluminum 1U split drawer KVM. The RD1U-S20XX has the ability to have the display out while the key board is stowed within the rack drawer, hence the split design. This allows for a huge amount of productivity in a compact area. When the keyboard is needed simply slides out and it’s ready to use, and when not needed slide it back into a stowed position. Because of the clamshell design the screen lays flat and when needed you simply open it, bringing the display up.  Friction slides are integrated along with mounting brackets to facilitate the installation in any standard 19” Rack enclosure.

Request Data Sheet
Category: Split LCD/KB/KVM
  • Description
  • Request Quote

Description

  • Features

    • Aluminum Lightweight Construction
    • Split Design – Independent LCD & Keyboard Drawers
    • Customizable Modular Design
    • LED Backlit LCDs
    • Integrated Cable Management

    • Fits cabinets depth from 20-28” Depth
    • Built-In Ball Bearing Slide Rails
    • Telescoping Mounting Arms
    • Flexible Keyboard & Pointer Options
    • Quarter Turn Locking Power Connector

LCD OPTIONS

15L: LED XGA 1024 x 768 (Max Res)

15L_ud_arrow


  • Backlight: 400 NITS, LED
  • Operational Temp: -20* to 70* C
  • Viewing Angles: 85-85-85-85
  • Contrast Ratio: 700:1
  • Response Time: 8ms

15N: NVIS XGA 1024 x 768 (Max Res)

15L_ud_arrow


  • Backlight: 400 NITS, LED
  • Operational Temp: -20* to 70* C
  • Viewing Angles: 85-85-85-85
  • Contrast Ratio: 700:1
  • Response Time: 8ms

15HB: High Bright XGA 1024 x 768 (Max Res):

15LHB_ud_arrow1


  • Backlight: 1000+ NITS, LED
  • Operational Temp: -20* to 70* C
  • Viewing Angles: 80-80-80-60
  • Contrast Ratio: 750:1
  • Response Time: 18ms

17L: LED Backlit, SXGA, 1280 x 1024 (Max Res)

17L_UD_arrows


  • Backlight: 350 NITS, LED
  • Operational Temp: -30* to 85* C
  • Viewing Angles: 85-85-80-80
  • Contrast Ratio: 1000:1
  • Response Time: 5ms

17HB: High Bright, SXGA, 1280 x 1024 (Max Res)

17HB_UD_arrows


  • Backlight: 1000+ NITS, LED
  • Operational Temp: -30* to 85* C
  • Viewing Angles: 85-85-80-80
  • Contrast Ratio: 1000:1
  • Response Time: 5ms




KEYBOARD MOUSE


Keyboard Data Sheet

B Keyboard: Full 103 Key Keyboard w/ Separate 2 Button Cirque Glidepad

B-Keyboard copy


IBM AT Compatible 104 key membrane Keyboard with high quality integrated Cirque Glidepad allows full mouse funtionality.  Individual key life expectancy approximately 5 million cycles.  PS/2 Interface with Optional USB.


Video I/O and KVM Backs


A: Analog VGA

A


This Universal Non-KVM BACK is our base model and comes with one (1) aRGB video port, and two (2) PS/2 (Optional USB) mouse/keyboard ports.

D: Digital, DVI, VGA

d


The D stands for DIGITAL, and this universal Non-KVM BACK delivers, with DVI-D (Digital Video Interface-Digital), aRGB Video, and PS/2 keyboard/mouse port. DVI-D delivers the cleanest and brightest picture. This BACK is only available on our RD1U-C24XX Series and can be ordered with optional USB Mouse/Keyboard Ports.

E: Economy 8 Port KVMS (Low Cost PS2/DB15 Connectors)

E


This Back is our Low Cost Entry Level Integrated 8 port KVM (KVMS-8800A) Switch. But don’t be fooled, it delivers plenty of power with an OSD menu for up to 4 users. Password protection, legacy connection (DB15, PS/2 Mouse/Keyboard), and Hot Key functionality, all at an affordable price.

V: Video, CVS, YPbPr, DVI, VGA

v


Our V BACK has all the Video and Input Ports you will need: aRGB, DVI-D, S Video, CSV with BNC Post, and PS/2 (option USB) keyboard / mouse. You can toggle between all of the video inputs sources right from the monitors OSD keypad.


VIDEO CONTROLLERS


V18X Mid Range, Embedded, Light Industrial

v18xaligned1


  • Max resolution: 1920 x 1200
  • Input options available: VGA, DVI or HDMI, CVS, YPbPr, Audio

V25X Entry Level, Embedded, Light Industrial

v25x


  • Max Resolution: 1920 x 1200
  • Input Options Available: VGA, DVI or HDMI, Display Port, Audio


Front Face Fixed Configurations


D1: Standard Front Face, with Double Thumb Screw / Pocket Pull Handle

D1iso


Our standard front face with two thumbscrews on either side, with a sleek and space saving pocket pull handle.

Da1: Integrated Audio Front Face, with Double Thumb Screw/ Pocket Pull Handle

Da1


An audio enhanced front face with two thumbscrews and a space saving pocket pull handle.

D7: Standard Front Face, with Double Thumb Screw / 5" Flush Collapsible Handle

D7iso


Our standard front face with two thumbscrews, and a 5″ solid collapsible handle that lays flush with the front face.

Da7: Integrated Audio, Double Thumb Screw / 5" Flush Collapsible Handle

Da7


An audio enhanced front face with two thumbscrews, and a 5″ solid collapsible handle that lays flush with the front face.


Mix and Match Front Face And Pull Handle Options


Pick a front face of your choice and a handle to suite your needs.

D: Standard Front Face, with Double Thumb Screw, U-Pick Handle

D


Our standard front face with two thumbscrews and the choice of handle to suite your needs.

Da: Integrated Audio Front Face, With Double Thumb Screw, U-Pick Handle

Da


An audio enhanced version of the standard front face with thumbscrews and the choice of handle to suite your needs.

2: 3" Chrome Wire Pull

handle-2


Compact 3″ chrome plated pull mounted on face of your choice.

3: 4" Chrome Wire Pull

handle-2


4″ chrome plated pull mounted on face of your choice.

4: 6" Chrome Wire Pull

Handle-4


Robust 6″ chrome plated wire pull mounted on face of your choice.

5: 4" Brushed Aluminum Pull

handle-5


Smooth 4″ brushed aluminum pull mounted on face of your choice.

6: 7.5" Stainless Steel Pull

#6-Handle-Iso


Solid 7.5″ stainless steel pull mounted on face of your choice.

8: 5" Collapsible Pull

#8-Handle-Iso


Convenient and sturdy 5″ collapsible pull mounted on face of your choice in a black finish.








  • Specifications

    Dimensions: 1.75″ (1U) x 19″ W x 20″ D
    Weight: 18 LBs Power Consumption: xx
    Values are approximate and vary based on configuration



Related products

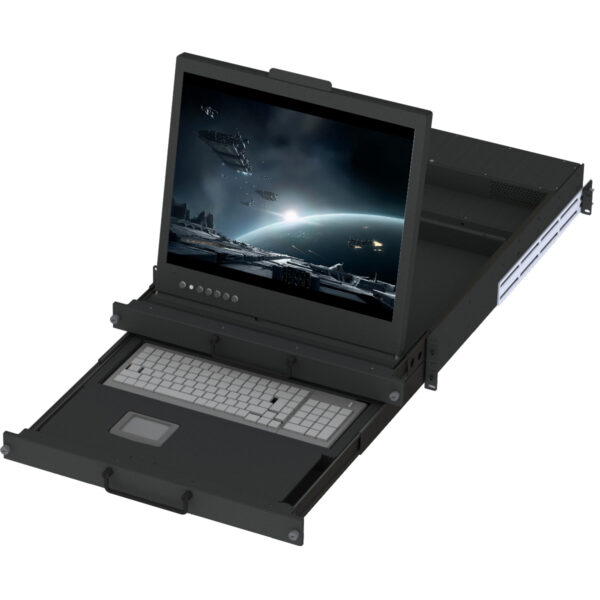

  • 2U Lay Flat Monitor, Split Inpendent Keyboard and Monitor Operation Extensive Keyboard, KVM and I/O options
