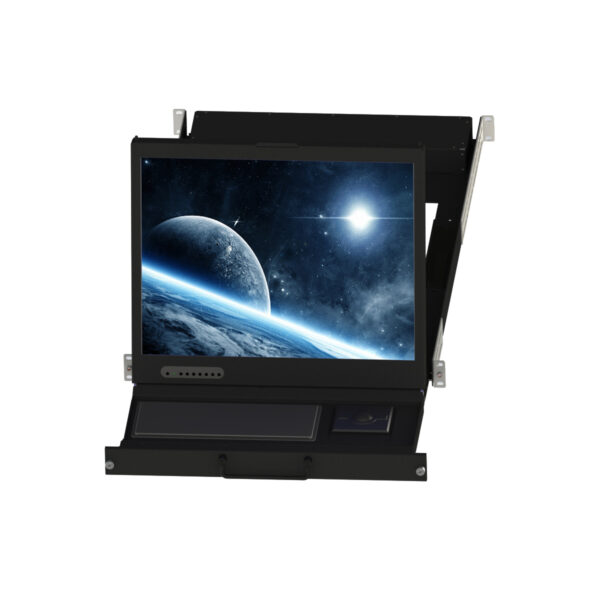

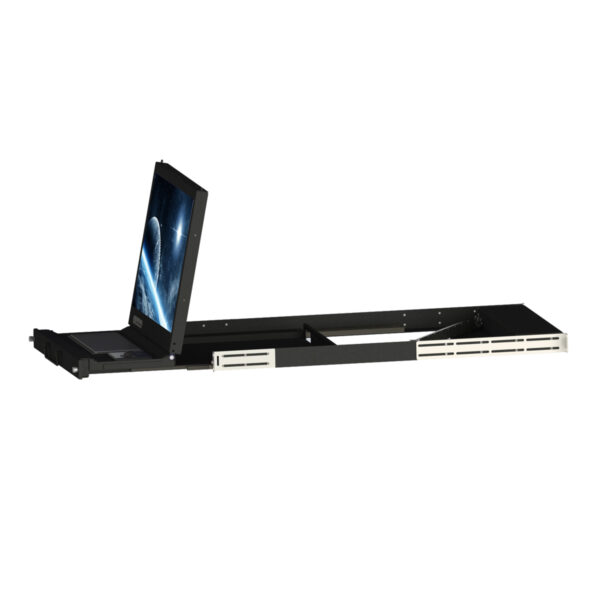

1U Lay Flat Unit, Accommodates 20.1″ Monitor, Stealth Keyboards, Full Line of KVM Switches

The RD1U-F32 is the first of it’s kind. You may have seen the 20.1” monitor in a 2U or 3U rack drawer configuration but never in a 1U. DIT has done it again with a 20.1” monitor with a native UXGA (1600×1200) resolution in a 1U Rack Drawer Configuration. The RD1U – F32XX Series is a high performance 1U LCD display drawer sporting 20.1″, 19″ and 17″ LCD monitors. These monitors have high contrast ratios and wide viewing angles with resolution at UXGA (1600×1200) for the 20.1” monitor and SXGA (1280X1024) for the 17” and 19” monitors.The lay flat design is held open with two 30 lbs (optional 45 lbs) heavy-duty torque hinges. One can move the monitor to just about any position 90 110 or 130 degrees etc by sliding the drawer in or out to the desired position. Ball bearing slides are integrated along with mounting brackets to facilitate the installation in any standard 19” rack enclosure.





Request Data Sheet
Category: Layflat LCD KB/KVM
  • Description
  • Request Quote

Description

  • Features

    • Aluminum Lightweight Construction
    • Layflat Design – Larger LCDs & Additional Keyboard Options
    • Customizable Modular Design
    • LED Backlit LCDs
    • Integrated Cable Management
    • Fits cabinets depth from 32-40” Depth

    • Built-In Ball Bearing Slide Rails
    • Telescoping Mounting Arms
    • Full KVM Options
    • Flexible Keyboard & Pointer Options
    • Quarter Turn Locking Power Connector

LCD OPTIONS

19L: LED Backlit, SXGA, 1280X1024 (Max Res)

19L_UD_arrow


  • Backlight: 350 NITS, LED
  • Operational Temp: 0* to 50* C
  • Viewing Angles: 85-85-80-80
  • Contrast Ratio: 1000:1
  • Response Time: 5ms

Note: Alternate Panel with Higher Specs Available.

19HB: High Bright, SXGA, 1280X1024 (Max Res)

19HB_UD_arrows


  • Backlight: 1000+ NITS, LED
  • Operational Temp: 0* to 50* C
  • Viewing Angles: 89-89-89-89
  • Contrast Ratio: 2000:1
  • Response Time: 0

201: CCFL Backlit, UXGA, 1600 x 1200 (Legacy Limited Availability)

201_arrows


  • Backlight: 300 NITS, CCFL
  • Operational Temp: 0* to 50* C
  • Viewing Angles: 89-89-89-89
  • Contrast Ratio: 800:1
  • Response Time: 8ms

20L: LED Backlit, UXGA, 1600 x 1200 (Max Res)

20L_UD_arrows


  • Backlight: 300 NITS, LED
  • Operational Temp: -0* to 50* C
  • Viewing Angles: 88-88-88-88
  • Contrast Ratio: 800:1
  • Response Time: 30ms

20HB: High Bright, UXGA, 1600 x 1200 (Max Res)

20HB_UD_arrows


  • Backlight: 700+ NITS, LED
  • Operational Temp: -0* to 50* C
  • Viewing Angles: 85-85-85-85
  • Contrast Ratio: 1000:1
  • Response Time: 30ms


KEYBOARD MOUSE


Keyboard Data Sheet

A Keyboard: 83 Key Cherry Keyboard w/ Built in 2 button 16mm Optical Trackball

A-Keyboard copy


Cherry 83 key Keyboard with high quality 16 mm integrated trackball and two button pointing device.  Featuring:  Mechanical keys with gold cross point contacts for high-precision key action,  individual key life expectancy approximately 20 million cycles and a MTBF of 134,000 hours.  Multiple language support available.  PS/2 Interface with Optional USB.

F Keyboard: 101 Key Rugged Keyboard w/ 3 Button 25mm Trackball (Sun Compatible)

F

Sun Microsystems Type 5 Compatible , 101 to 105 Key (Depending on Language Variant)  Keyboard  with high quality 25 mm integrated trackball and three  button pointing device.  Featuring:   Individual Key Life expectancy approximately 50 million cycles and a MTBF of 55,000 hours.  USB Interface and Serial Variants to support new and legacy Sun Systems.

H Keyboard: 113 Key Rugged NEMA 4X Sealed Keyboard w/ 3 Button Hula Pointer

H-Keyboard copy


This industrial 113 Key Keyboard with integrated Hula Point pointing device comes with 20 Function Keys, a 10-Key Number pad and is made of industrial silicone rubber. It has an operating temperature range of -40F to 194F (-40C to 90C) and a  MTBF Greater than 10 Million Cycles. It can be ordered in MS Windows (PS/2 or USB) or SUN (USB only) Configurations.

I2 Keyboard: 82 Key Keyboard w/ 2 Button Touch Pad

I2 keyboard


(SP6G) This touchpad keyboard has an enhanced slim design, which works with any IBM PS/2 compatible computer. Utilizing the latest in rubber mechanical key switch technology. Built-in touchpad with super sensing technology for precise tracking, 3 standard mouse buttons, excellent tactile key stroke. High quality rubber membrane key switches. PS/2 and (USB Iu Order Code) Interface, Work with KVM switches, 1,000,000 life cycles Compatible OS: Win 98SE / 2000/ME/XP FCC, CE, ESD and BSMI certification

J2 Keyboard: 82 Key Keyboard w/ 2 Button Trackball

J2 Keyboard


(SP7T) This trackball-keyboard has an enhanced slim design, which works with any IBM PS/2 compatible computer. Utilizing the latest in rubber mechanical key switch technology. Built-in φ16mm optical trackball 2 standard mouse buttons, excellent tactile key stroke. High quality rubber membrane key switches, PS/2 and (USB Ju Order Code) Interface, Work with KVM switches, 1,000,000 life cycles Compatible OS: Win 98 SE/2000/ME/XP FCC, CE, ESD and BSMI certification.

O Keyboard: 88 Key Cherry Keyboard w/ 2 Button Touchpad

O-Keyboard copy


Built with mechanical keys with a gold cross point contacts for high-percision key action. Programmable keys with a fast switch-over to numeric block via Fn key. Available with multiple language supper

P1 Keyboard: 81 Key Rugged NEMA4X Sealed Keyboard w/ 3 Button 38mm (1.5") Trackball

P1-Keyboard copy


Made of industrial silicone rubber this 81 key keyboard provides 101 key functionality and is coupled with a 3 button fully sealed 38mm (1.5″) trackball.  Its fully sealed keys, trackball, and meet NEMA 4X standards to be resistant to dirt, debris and water making in ideal for harsh environments

Qn Keyboard: 97 Key Rugged NEMA4X sealed keyboard 2/ 2 button touchpad and optional backlight

QN-Keyboard


Made of industrial silicone rubber this is a full-sized keyboard with added convenience of a built-in touch pad. Its fully sealed keys, touchpad, and number pad meet NEMA 4X standards to be resistant to dirt, debris and water making in ideal for harsh environments.

Video I/O and KVM Backs

A: Analog VGA

A


This Universal Non-KVM BACK is our base model and comes with one (1) aRGB video port, and two (2) PS/2 (Optional USB) mouse/keyboard ports.

Bh: Hybrid Stand Alone PS/2/USB 8 Port KVM switch with Cascading Port

KVM-Bh


Hybrid Stand Alone PS/2/USB 8 Port KVM switch with Cascading Port. Can be cascaded using a Bh or Ch Integrated RD1U Drawer or Legacy B, C, I, J KVM’s

Ch: Hybrid Stand Alone PS/2/USB 16 Port KVM switch with Cascading Port

Ch


Hybrid Stand Alone PS/2/USB 16 Port KVM switch with Cascading Port. Can be cascaded using a Bh or Ch Integrated RD1U Drawer or Legacy B, C, I, J KVM

D: Digital, DVI, VGA

d


The D stands for DIGITAL, and this universal Non-KVM BACK delivers, with DVI-D (Digital Video Interface-Digital), aRGB Video, and PS/2 keyboard/mouse port. DVI-D delivers the cleanest and brightest picture. This BACK is only available on our RD1U-C24XX Series and can be ordered with optional USB Mouse/Keyboard Ports.

E: Economy 8 Port KVMS (Low Cost PS2/DB15 Connectors)

E


This Back is our Low Cost Entry Level Integrated 8 port KVM (KVMS-8800A) Switch. But don’t be fooled, it delivers plenty of power with an OSD menu for up to 4 users. Password protection, legacy connection (DB15, PS/2 Mouse/Keyboard), and Hot Key functionality, all at an affordable price.

F:8 Port Rose KVM switch with PS2 Connectors

F


This Back is our Vista Rose Integrated 8 port KVM Switch. With optional OSD menu. Password protection, legacy connection (DB15, PS/2 Mouse/Keyboard), and Hot Key functionality, all at an affordable price.

G:4 Port DVI-D KVMS USB key/Mouse, +Audio

G


First generation DVI-D Media switch BACK, gives complete control over 4 CPU’s DVI-D Video, USB keyboard/mouse, speaker, microphone, and even 2 USB devices (Printers, Scanners, Etc.). With a few hot key commands, you won’t believe how easy it is to jump from one multi-media PC to the next.

K:4 Port aRGB KVMS USB or PS2 Key/Mouse, +Audio

K


KVMS-RGBA4 – Our new 4-port KVM and Peripheral Sharing Switch brings extra value to conventional KVM switches by offering USB peripheral sharing capabilities, audio and microphone support, and multi-platform support for Mac, Sun, USB and PS/2. Up to 127 different USB devices can be daisy chained from this KVM switch. Sharing speakers and a microphone also offers extra value and convenience for the users. USB and KVM technology together makes cross-platform management easy. A single USB console can control PCs, Macs, or even Sun workstations, and share peripherals and audio devices between the computers. Any USB-enabled computers, using any USB- compatible operating system, can benefit from the efficiency, expense reduction and convenience of this switch.

L: 8 Port RJ45 Connector KVM switch With Cascade Ports

L


KVMS-08C Switches are control units that allow access to up to 8 computers from a single KVM (keyboard, monitor, and mouse) console. They feature RJ-45 connectors and Cat 5 cable to link to the computers. Combined with Auto Signal Compensation (ASC) signals can travel up to 40 meters and still maintain high video resolution. Utilizing PS/2 and USB KVM Adapter Cables for the final linkup. They also permit any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

M: 16 Port RJ45 Connector KVM switch with Cascade Ports

M


KVMS-16C Switches are control units that allow access to up to 16 computers from a single KVM (keyboard, moni- tor, and mouse) console. They feature RJ-45 connectors and Cat 5 cable to link to the computers. Combined with Auto Signal Compensation (ASC) signals can travel up to 40 meters and still maintain high video resolution. Utilizing PS/2 and USB KVM Adapter Cables for the final linkup. They also permit any combination of PCs, Macs, Sun com- puters, and serial devices to coexist on the installation.

O: 8 Port DVI/HDMI Connector KVM with USB Keyboard and Mouse Support

OT-KVM-Back1


V: Video, CVS, YPbPr, DVI, VGA

v


Our V BACK has all the Video and Input Ports you will need: aRGB, DVI-D, S Video, CSV with BNC Post, and PS/2 (option USB) keyboard / mouse. You can toggle between all of the video inputs sources right from the monitors OSD keypad.

Z1: Hybrid

K


Z2: Hybrid

K





VIDEO CONTROLLERS


Note: The boards shown below have multiple inputs availible but might be more then needed for your project. Certain assemblys might restrict our abilities to bring every port out of board. Please speak to one of our sales engineers to dial in a configuration that matches your needs.

V09x High End, Broadcast, Long Road Map

V09x


  • Max resolution: 1920 x 1200
  • Input Options Available: VGA, DVI-D, HDMI, 2xCVS (Composite), YPbPr , (Component), IP50 or RS232 Controls, Optional 1 or 2 Channel 3G HD-SDI, Optional Audio, Picture in Picture

V09xM High End, Military, Conformal Coated, Long Road Map

V09x


  • Max resolution: 1920 x 1200
  • Input Options Available: VGA, DVI-D, HDMI, 2xCVS (Composite), YPbPr , (Component), IP50 or RS232 Controls, Optional 1 or 2 Channel 3G HD-SDI, Optional Audio, Picture in Picture

V14x Mid Range, Light Industrial

V14alignedx


  • Max resolution: 1920 x 1200
  • Input Options Available: VGA, DVI-D, CVS, S-Video, YPbPr, Audio

V15x High End, Broadcast, Long Road Map

v15x-aligned


  • Max resolution: 1920 x 1200
  • Input Options Available: VGA, DVI-D, HDMI, 2xCVS (Composite), YPbPr , (Component), IP50 or RS232 Controls, Optional 1 or 2 Channel 3G HD-SDI, Optional Audio, Dual Digital-Picture in Picture

V15xM High End, Military, Conformal Coated, Long Road Map

v15x-aligned


  • Max resolution: 1920 x 1200
  • Input Options Available: VGA, DVI-D, HDMI, 2xCVS (Composite), YPbPr , (Component), IP50 or RS232 Controls, Optional 1 or 2 Channel 3G HD-SDI, Optional Audio, Dual Digital-Picture in Picture

V25X Entry Level, Embedded, Light Industrial

v25x


  • Max Resolution: 1920 x 1200
  • Input Options Available: VGA, DVI or HDMI, Display Port, Audio


Front Face Fixed Configurations


A1: Standard Front Face, with Cam Lock / Pocket Pull Handle

A


Our standard front face with cam lock and a space saving pocket pull handle.

D1: Standard Front Face, with Double Thumb Screw / Pocket Pull Handle

D1iso


Our standard front face with two thumbscrews on either side, with a sleek and space saving pocket pull handle.

Da1: Integrated Audio Front Face, with Double Thumb Screw/ Pocket Pull Handle

Da1


An audio enhanced front face with two thumbscrews and a space saving pocket pull handle.

D7: Standard Front Face, with Double Thumb Screw / 5" Flush Collapsible Handle

D7iso


Our standard front face with two thumbscrews, and a 5″ solid collapsible handle that lays flush with the front face.

Da7: Integrated Audio, Double Thumb Screw / 5" Flush Collapsible Handle

Da7


An audio enhanced front face with two thumbscrews, and a 5″ solid collapsible handle that lays flush with the front face.


Mix and Match Front Face And Pull Handle Options


Pick a front face of your choice and a handle to suite your needs.

B: Standard Front Face, with Cam Lock, U-Pick Handle option

FaceB


Our standard front face with a high security cam lock and a choice of handle to suite your needs.

Ba: Integrated Audio Front Face, with Cam Lock, U-Pick Handle option


An Audio enhanced front face with a high security cam lock and a choice of handle to suite your needs.

C: Standard Front Face, with Double Thumb Latch, U-Pick Handle option

Face-C


D: Standard Front Face, with Double Thumb Screw, U-Pick Handle

D


Our standard front face with two thumbscrews and the choice of handle to suite your needs.

Da: Integrated Audio Front Face, With Double Thumb Screw, U-Pick Handle

Da


An audio enhanced version of the standard front face with thumbscrews and the choice of handle to suite your needs.

2: 3" Chrome Wire Pull

handle-2


Compact 3″ chrome plated pull mounted on face of your choice.

3: 4" Chrome Wire Pull

handle-2


4″ chrome plated pull mounted on face of your choice.

4: 6" Chrome Wire Pull

Handle-4


Robust 6″ chrome plated wire pull mounted on face of your choice.

5: 4" Brushed Aluminum Pull

handle-5


Smooth 4″ brushed aluminum pull mounted on face of your choice.

6: 7.5" Stainless Steel Pull

#6-Handle-Iso


Solid 7.5″ stainless steel pull mounted on face of your choice.

8: 5" Collapsible Pull

#8-Handle-Iso


Convenient and sturdy 5″ collapsible pull mounted on face of your choice in a black finish.




  • Specifications

    Dimensions: 1.75″ (1U) x 19″ W x 32″ D
    Weight: 28 LBs
    Power Consumption: 60 Watts
    Values are approximate and vary based on configuration
