Description
LCD OPTIONS
173W: LED Backlit, FHD, 1920 x 1080 (Max Res)
173W: LED Backlit, FHD, 1920 x 1080 (Max Res)
- Backlight: 400 NITS, LED
- Operational Temp: -0º C to 70º C
- Storage Temp: -20º C to 70º C
- Viewing Angles: 80-80-60-80
- Contrast Ratio: 600:1
- Response Time: 40ms
- Color: 16.7M (6 Bit + Hi-FRC)
- Color Gamut: 72%
173HB: High Bright, FHD, 1920 x 1080 (Max Res)
173HB: High Bright, FHD, 1920 x 1080 (Max Res)
- Backlight: 1000 NITS, LED
- Operational Temp: -0º C to 70º C
- Storage Temp: -20º C to 70º C
- Viewing Angles: 80-80-60-80
- Contrast Ratio: 600:1
- Response Time: 40ms
- Color: 16.7M (6 Bit + Hi-FRC)
- Color Gamut: 72%
Optional Enhancements and Upgrades
- Optical Bonding
- Conformal Coating of Electronics
- PCAP and Resistive Touch
- Much More!!
Ask your sales engineer for more information.
VIDEO CONTROLLERS
Note: The boards shown below have multiple inputs availible but might be more then needed for your project. Certain assemblys might restrict our abilities to bring every port out of board. Please speak to one of our sales engineers to dial in a configuration that matches your needs.
V35x Embeded
V35x Embeded
- Max resolution: 1920 x 1200
- Input Options Available: VGA, DVI-D or HDMI, Display Port
Front Face Fixed Configurations
D8: Most Popular Front Face, with Double Thumb Screw / 5″ Flush Collapsible Handle
D8: Most Popular Front Face, with Double Thumb Screw / 5" Flush Collapsible Handle
Double Thumbscrew Front Face with 5″ Collapsible Handle
D1: Standard Front Face, with Double Thumb Screw / Pocket Pull Handle
D1: Standard Front Face, with Double Thumb Screw / Pocket Pull Handle
front face with two thumbscrews on both side, with a sleek and space saving pocket pull handle.
Da1: Integrated Audio Front Face, with Double Thumb Screw/ Pocket Pull Handle
Da1: Integrated Audio Front Face, with Double Thumb Screw/ Pocket Pull Handle
An audio enhanced front face with two thumbscrews and a space saving pocket pull handle.
D7: Standard Front Face, with Double Thumb Screw / 5″ Flush Collapsible Handle
D7: Standard Front Face, with Double Thumb Screw / 5" Flush Collapsible Handle
Enhanced front face with two thumbscrews, and a 5″ solid collapsible HANDLE that lays FLUSH with the front face.
Da7: Integrated Audio, Double Thumb Screw / 5″ Flush Collapsible Handle
Da7: Integrated Audio, Double Thumb Screw / 5" Flush Collapsible Handle
An audio enhanced front face with two thumbscrews, and a 5″ solid collapsible HANDLE that lays FLUSH with the front face.
Panel Configuration Options

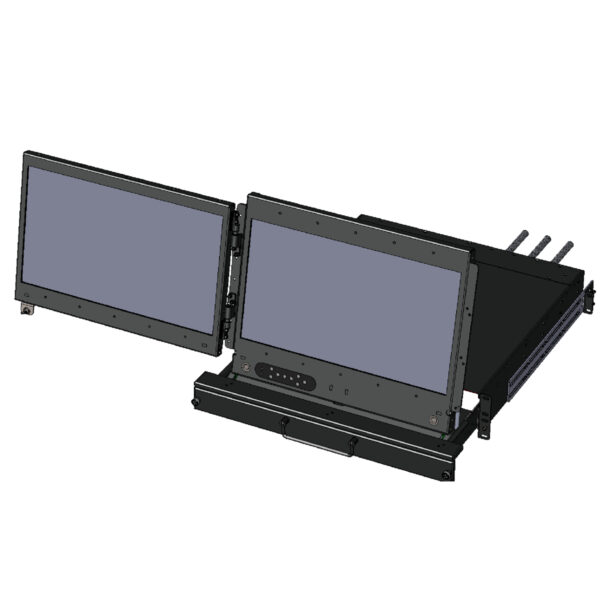

2 Panel Option Center - Right
Center- Right
2 Panel Option Top - Center
Top-Center
2 Panel Option Left-Center
Left-Center

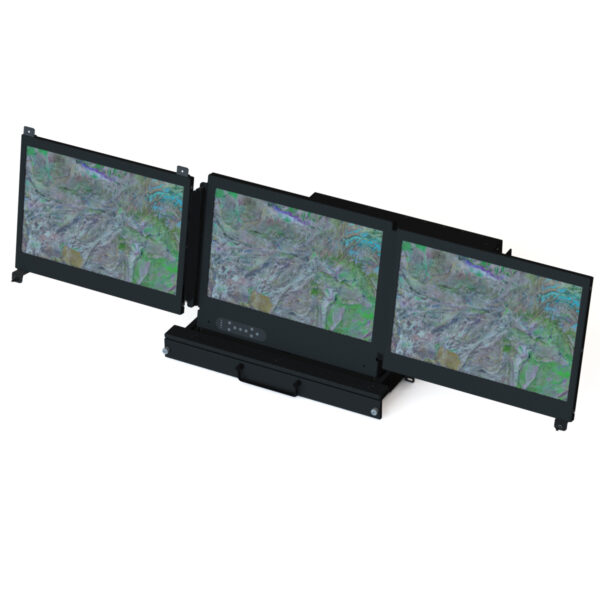

3 Panel Option Left Center Right
Left-Center-Right
