Keyboard Data Sheet
A Keyboard: 83 Key Cherry Keyboard w/ Built in 2 button 16mm Optical Trackball
Cherry 83 key Keyboard with high quality 16 mm integrated trackball and two button pointing device. Featuring: Mechanical keys with gold cross point contacts for high-precision key action, individual key life expectancy approximately 20 million cycles and a MTBF of 134,000 hours. Multiple language support available. PS/2 Interface with Optional USB.
F Keyboard: 101 Key Rugged Keyboard w/ 3 Button 25mm Trackball (Sun Compatible)
Sun Microsystems Type 5 Compatible , 101 to 105 Key (Depending on Language Variant) Keyboard with high quality 25 mm integrated trackball and three button pointing device. Featuring: Individual Key Life expectancy approximately 50 million cycles and a MTBF of 55,000 hours. USB Interface and Serial Variants to support new and legacy Sun Systems.
G Keyboard: 83 Key Cherry Keyboard w/ 2 Button Optical Mouse
Keyboard: Cherry 83 Key Keyboard Featuring Mechanical Keys with Gold Cross point Contacts for high Precision action Individual life expectancy ~20 Million Cycles, MTBF of 134,000 hours. Multiple language support. Available PS/2 Interface, with optional USB.
Mouse: Small enough to use right above the keyboard and tuck neatly away when you close the clamshell KVM Drawer – just 1” wide and 2-1/2” long. Smooth optical technology – point & click with ease, speed, and precision. Two buttons – left & right click. Works on most surfaces – no need for a mouse pad. High impact polycarbonate shell. Ultra-light 3ft. cord – durable yet flexible. Maintenance free with no ball or moving parts to clean. USB connector.
H Keyboard: 113 Key Rugged NEMA 4X Sealed Keyboard w/ 3 Button Hula Pointer
This industrial 113 Key Keyboard with integrated Hula Point pointing device comes with 20 Function Keys, a 10-Key Number pad and is made of industrial silicone rubber. It has an operating temperature range of -40F to 194F (-40C to 90C) and a MTBF Greater than 10 Million Cycles. It can be ordered in MS Windows (PS/2 or USB) or SUN (USB only) Configurations.
I2 Keyboard: 82 Key Keyboard w/ 2 Button Touch Pad
(SP6G) This touchpad keyboard has an enhanced slim design, which works with any IBM PS/2 compatible computer. Utilizing the latest in rubber mechanical key switch technology. Built-in touchpad with super sensing technology for precise tracking, 3 standard mouse buttons, excellent tactile key stroke. High quality rubber membrane key switches. PS/2 and (USB Iu Order Code) Interface, Work with KVM switches, 1,000,000 life cycles Compatible OS: Win 98SE / 2000/ME/XP FCC, CE, ESD and BSMI certification
J2 Keyboard: 82 Key Keyboard w/ 2 Button Trackball
(SP7T) This trackball-keyboard has an enhanced slim design, which works with any IBM PS/2 compatible computer. Utilizing the latest in rubber mechanical key switch technology. Built-in φ16mm optical trackball 2 standard mouse buttons, excellent tactile key stroke. High quality rubber membrane key switches, PS/2 and (USB Ju Order Code) Interface, Work with KVM switches, 1,000,000 life cycles Compatible OS: Win 98 SE/2000/ME/XP FCC, CE, ESD and BSMI certification.
M Keyboard: 119 key Rugged Keyboard w/ 3 Button Touchpad (Sun Compatible)
KML-119 is the second Sun Microsystems keyboard we offer for the RD1U series. It features a 119 key US or UK layout (Specific language variants available upon request) and a high quality touch pad. Individual Key Life expectancy approximately 50 million cycles. Key travel 3mm. Typical operating force 50gm.
P1 Keyboard: 81 Key Rugged NEMA4X Sealed Keyboard w/ 3 Button 38mm (1.5") Trackball
Qn Keyboard: 97 Key Rugged NEMA4X sealed keyboard 2/ 2 button touchpad and optional backlight

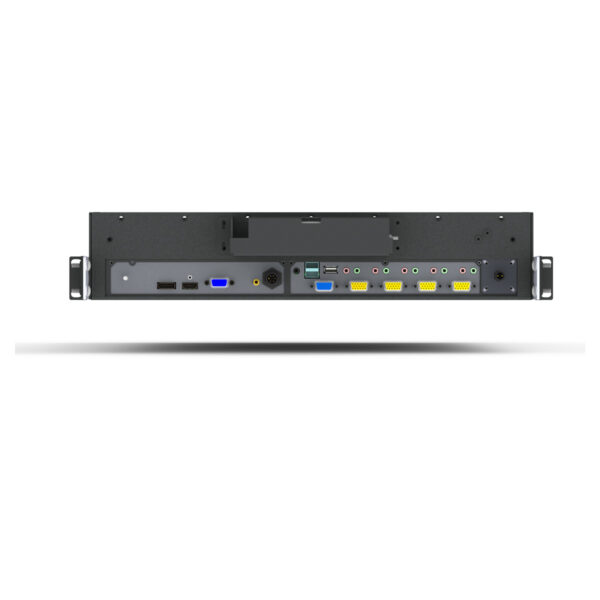

Video I/O and KVM Backs
D: Digital, DVI, VGA
The D stands for DIGITAL, and this universal Non-KVM BACK delivers, with DVI-D (Digital Video Interface-Digital), aRGB Video, and PS/2 keyboard/mouse port. DVI-D delivers the cleanest and brightest picture. This BACK is only available on our RD1U-C24XX Series and can be ordered with optional USB Mouse/Keyboard Ports.
E: Economy 8 Port KVMS (Low Cost PS2/DB15 Connectors)
G:4 Port DVI-D KVMS USB key/Mouse, +Audio
K:4 Port aRGB KVMS USB or PS2 Key/Mouse, +Audio
KVMS-RGBA4 – Our new 4-port KVM and Peripheral Sharing Switch brings extra value to conventional KVM switches by offering USB peripheral sharing capabilities, audio and microphone support, and multi-platform support for Mac, Sun, USB and PS/2. Up to 127 different USB devices can be daisy chained from this KVM switch. Sharing speakers and a microphone also offers extra value and convenience for the users. USB and KVM technology together makes cross-platform management easy. A single USB console can control PCs, Macs, or even Sun workstations, and share peripherals and audio devices between the computers. Any USB-enabled computers, using any USB- compatible operating system, can benefit from the efficiency, expense reduction and convenience of this switch.
L: 8 Port RJ45 Connector KVM switch With Cascade Ports
KVMS-08C Switches are control units that allow access to up to 8 computers from a single KVM (keyboard, monitor, and mouse) console. They feature RJ-45 connectors and Cat 5 cable to link to the computers. Combined with Auto Signal Compensation (ASC) signals can travel up to 40 meters and still maintain high video resolution. Utilizing PS/2 and USB KVM Adapter Cables for the final linkup. They also permit any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.
M: 16 Port RJ45 Connector KVM switch with Cascade Ports
KVMS-16C Switches are control units that allow access to up to 16 computers from a single KVM (keyboard, moni- tor, and mouse) console. They feature RJ-45 connectors and Cat 5 cable to link to the computers. Combined with Auto Signal Compensation (ASC) signals can travel up to 40 meters and still maintain high video resolution. Utilizing PS/2 and USB KVM Adapter Cables for the final linkup. They also permit any combination of PCs, Macs, Sun com- puters, and serial devices to coexist on the installation.
Note: The boards shown below have multiple inputs availible but might be more then needed for your project. Certain assemblys might restrict our abilities to bring every port out of board. Please speak to one of our sales engineers to dial in a configuration that matches your needs.
Front Face Fixed Configurations
Mix and Match Front Face And Pull Handle Options
Pick a front face of your choice and a handle to suite your needs.
Ba: Integrated Audio Front Face, with Cam Lock, U-Pick Handle option
An Audio enhanced front face with a high security cam lock and a choice of handle to suite your needs.
