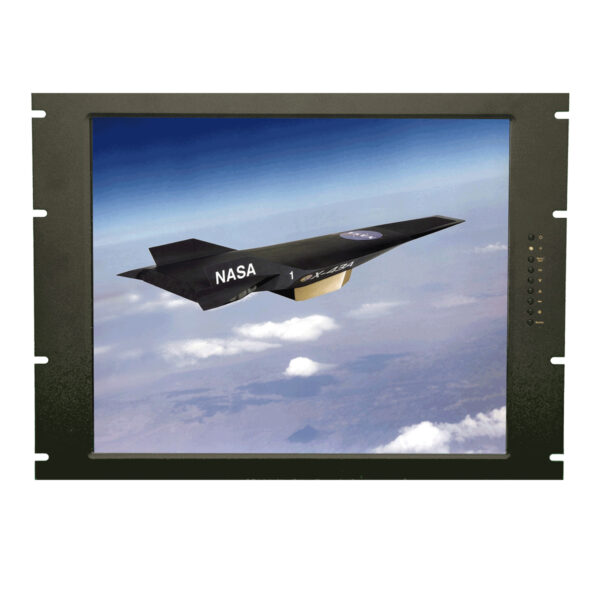

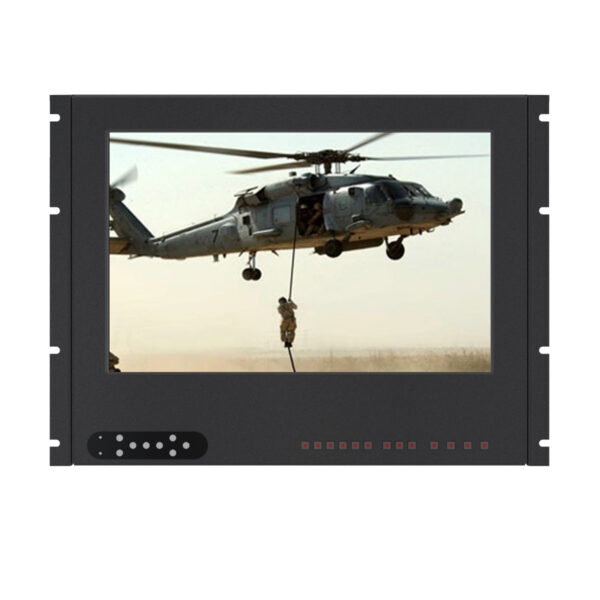

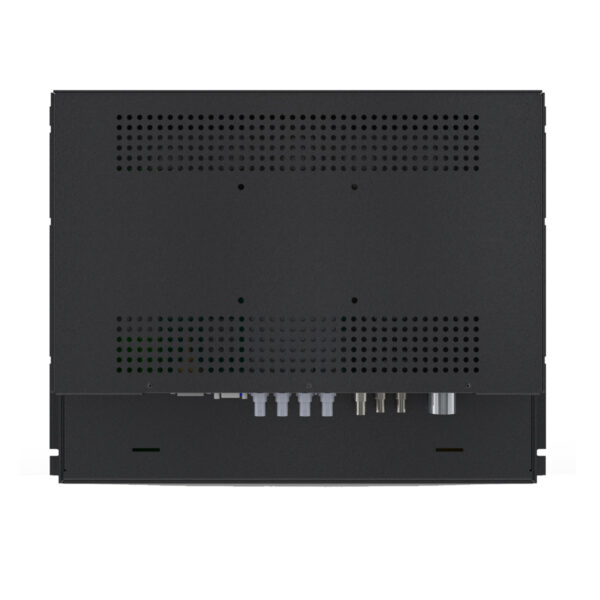

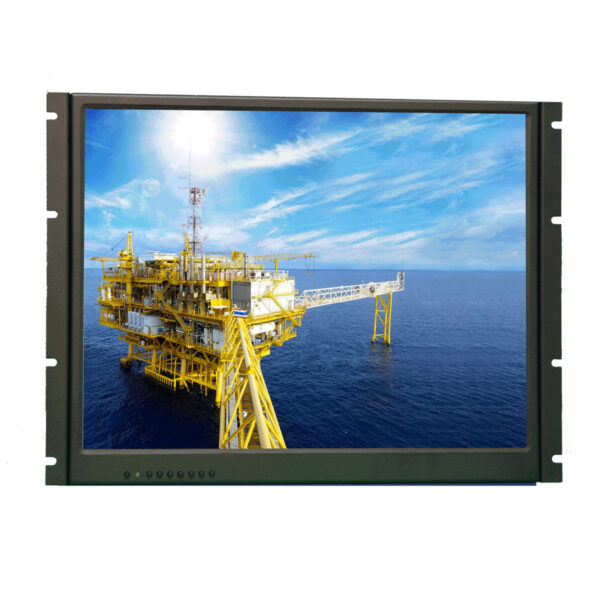

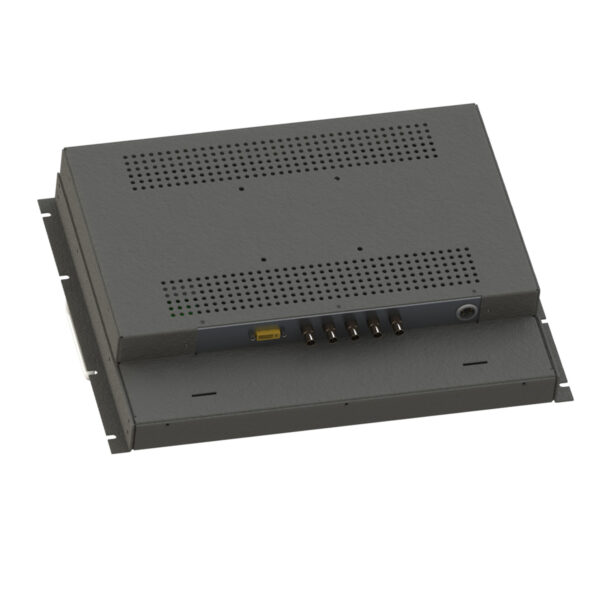

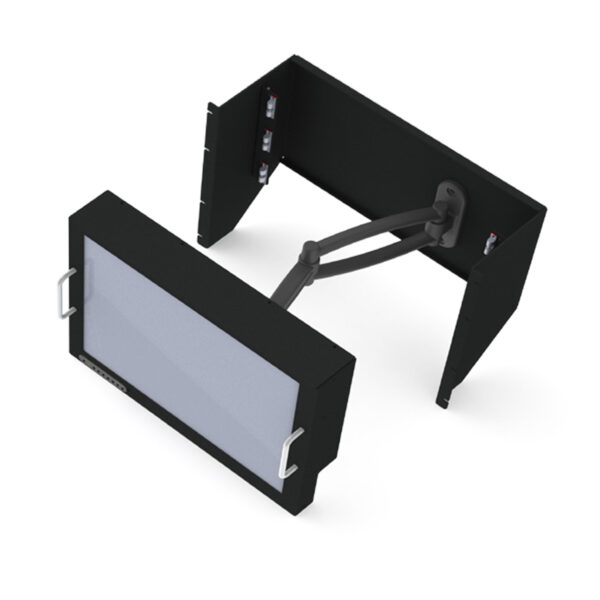

The DTS-RMA Series is a high performance all aluminum 8U rack mount display which fits standard 19” racks. It offers 17.3” and 20” LCD panels with high contrast ratios and wide viewing angles. With only 3” of depth this display will fit the bill for your next rack, panel, in wall or Kiosk project. It can be used in Industrial, Commercial, Broadcast, Home Automation or Military applications. It has options for Surface Capacitive, Resistive, and PCAP Touch with serial  and USB interface choices.



Request Data Sheet
Request A Quote
Category:

Description

DTS-RAXX

  • Features

    feature


    feature

LCD OPTIONS

173W: LED Backlit, FHD, 1920 x 1080 (Max Res)

173W: LED Backlit, FHD, 1920 x 1080 (Max Res)

173W: LED Backlit, FHD, 1920 x 1080 (Max Res)


  • Backlight: 350 NITS, LED
  • Operational Temp: 0* to 75* C
  • Viewing Angles: 80-80-60-80
  • Contrast Ratio: 600:1
  • Response Time: 40ms

20L: LED Backlit, UXGA, 1600X1200 (Max Res)

20L: LED Backlit, UXGA, 1600X1200 (Max Res)

20L: LED Backlit, UXGA, 1600X1200 (Max Res)



  • Backlight: 260 NITS, LED
  • Operational Temp: 0* to 50* C
  • Viewing Angles: 85-85-85-85
  • Contrast Ratio: 1000:1
  • Response Time: 30ms

Note: Alternate Panel with Higher Specs Available.


VIDEO CONTROLLERS

V14x Mid Range, Light Industrial

V14x Mid Range, Light Industrial

V14x Mid Range, Light Industrial



  • Max resolution: 1920 x 1200
  • Input Options Available: VGA, DVI-D, CVS, S-Video, YPbPr, Audio

V23x Embedded Controller

V25x Embedded Controller

V25x Embedded Controller



  • Max resolution: 1920 x 1200
  • Input Options Available: VGA, Displayport,HDMI

V25x Embedded Controller

V25x Embedded Controller

V25x Embedded Controller



  • Max resolution: 1920 x 1200
  • Input Options Available: VGA, DVI



  • Specifications

    Dimensions: 14″ (8U) x 19″ W x 3″ D
    Weight: xx LBs Power Consumption: xx
    Values are approximate and vary based on configuration
