DTS-OR215W

The DTS-OR215W Series is a high performance 8U 21.5” wide LCD display. The display is the highest quality in its class. This LCD has a native resolution of FHD (1920 x 1080). It is ideal for Broadcast / Studio Applications with all the standard video formats. It can do 1:1 pixel mapping or scale your input to screen. It employs the new technology S-IPS (Super In Plane Switching) to produce the industries widest viewing angle 178°/178° and the fastest response time (5.5 ms). DTS-OR215W has been designed to accomodate a wide range of video signal inputs depending on your choice of controllers. They include aRGB, DVI-D, HDMI, DP, YPbPr, SVHS, Cvideo, and 3G-SDI. It comes with an Articulating Arm lets you maneuver the monitor to almost any position.

Request Data Sheet
Category: Rack mount LCD Tags: 1920X1080 FHD, HighBright, PCAP tough
  • Description
  • Request Quote

Description

  • Features

    • Rugged All Aluminum Construction

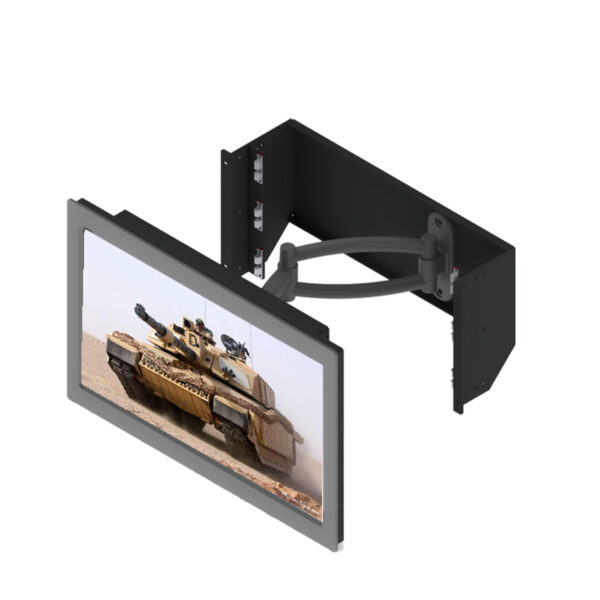

    • Articulating Arm
    • Fits Inside 19″ Rack Frame

    • Touch Screen Options Available
    • Compact Enclosures for Rackmount Panel applications
    • Standard OSD Controlls

LCD OPTIONS

215W: FHD, 1920 x 1280 (Max Res)


  • Backlight: 250 NITS, LED (High Bright Option Available)
  • Operational Temp: 0* to 50* C
  • Viewing Angles: 85-85-85-85
  • Contrast Ratio: 1000:1
  • Response Time: 14ms


VIDEO CONTROLLERS

V13x Mid Range, Light Industrial

V14alignedx


  • Max resolution: 1920 x 1200
  • Input Options Available: VGA, HDMI, Display Port, Audio, Optional YPbPr

V23x Controller


  • Max resolution: 1920 x 1200
  • Input Options Available: VGA, Displayport,HDMI

V25x Embedded Controller


  • Max resolution: 1920 x 1200
  • Input Options Available: VGA, DVI



  • Specifications

    Dimensions: x.x” (2U) x xx” W x xx” D
    Weight: xx LBs Power Consumption: xx
    Values are approximate and vary based on configuration
