MM156Ex

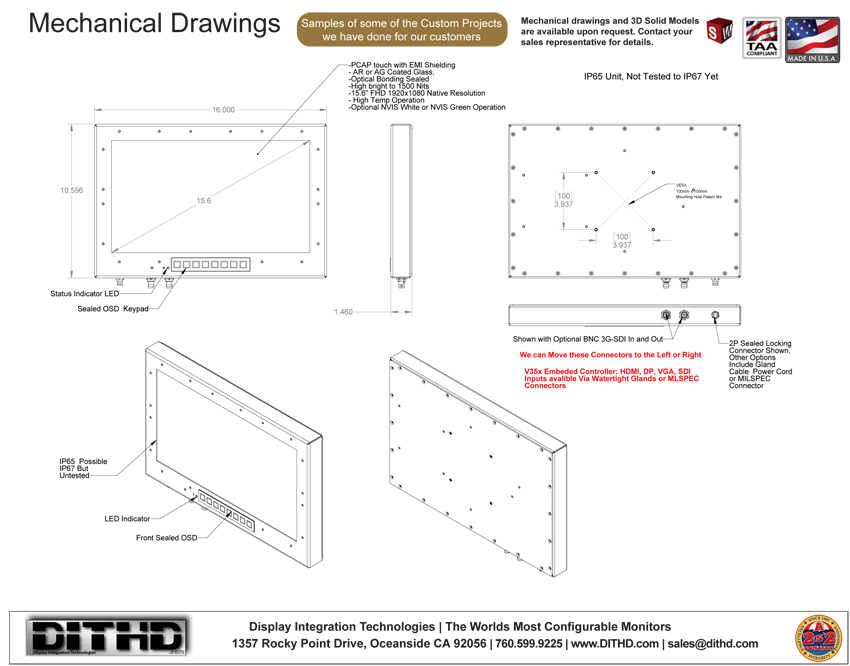

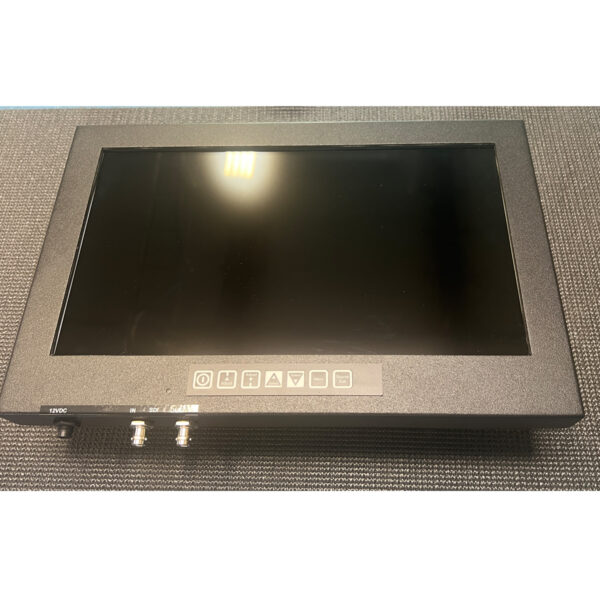

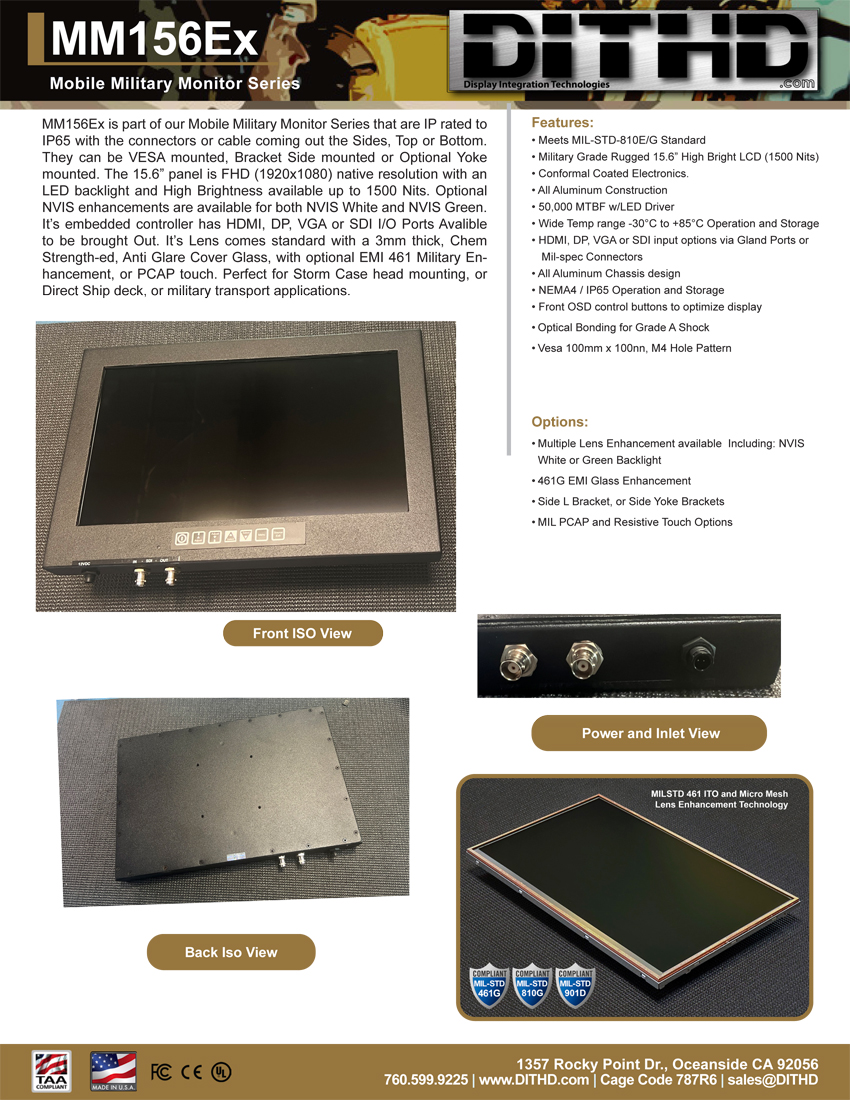

MM156Ex is part of our Mobile Military Monitor Series that are IP rated to IP65 with the connectors or cable coming out the Sides, Top or Bottom. They can be VESA mounted, Bracket Side mounted or Optional Yoke mounted. The 15.6” panel is FHD (1920×1080) native resolution with an LED backlight and High Brightness available up to 1500 Nits. Optional NVIS enhancements are available for both NVIS White and NVIS Green. It’s embedded controller has HDMI, DP, VGA or SDI I/O Ports Avalible to be brought Out. It’s Lens comes standard with a 3mm thick, Chem Strength-ed, Anti Glare Cover Glass, with optional EMI 461 Military Enhancement, or PCAP touch. Perfect for Storm Case head mounting, or Direct Ship deck, or military transport applications.
Description

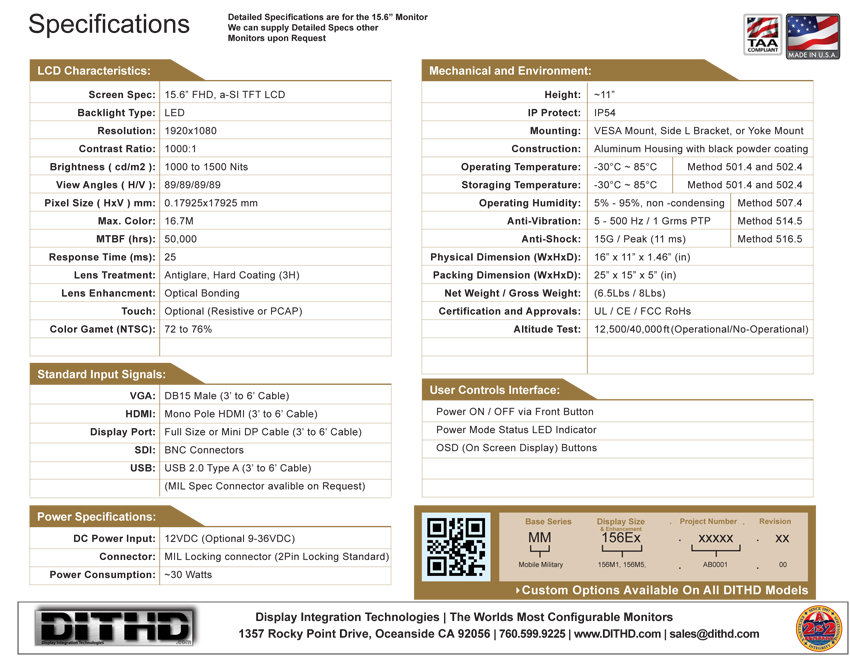

Features

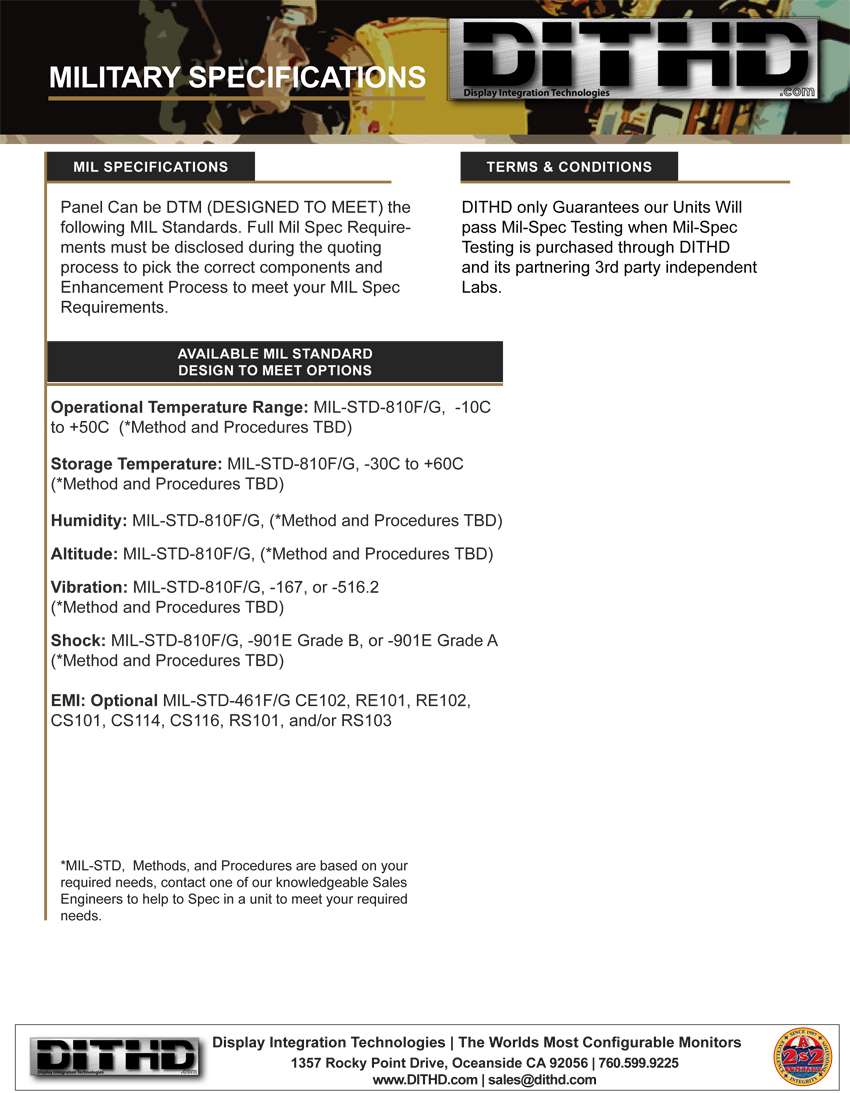

* Meets MIL-STD-810E/G Standard
* Military Grade Rugged 15.6” High Bright LCD (1500 Nits)
* Conformal Coated Electronics.
* All Aluminum Construction
* 50,000 MTBF w/LED Driver
* Wide Temp range -30°C to +85°C Operation and Storage
* HDMI, DP, VGA or SDI input options via Gland Ports or Mil-spec Connectors
* All Aluminum Chassis design
* NEMA4 / IP65 Operation and Storage
* Front OSD control buttons to optimize display
* Optical Bonding for Grade A Shock

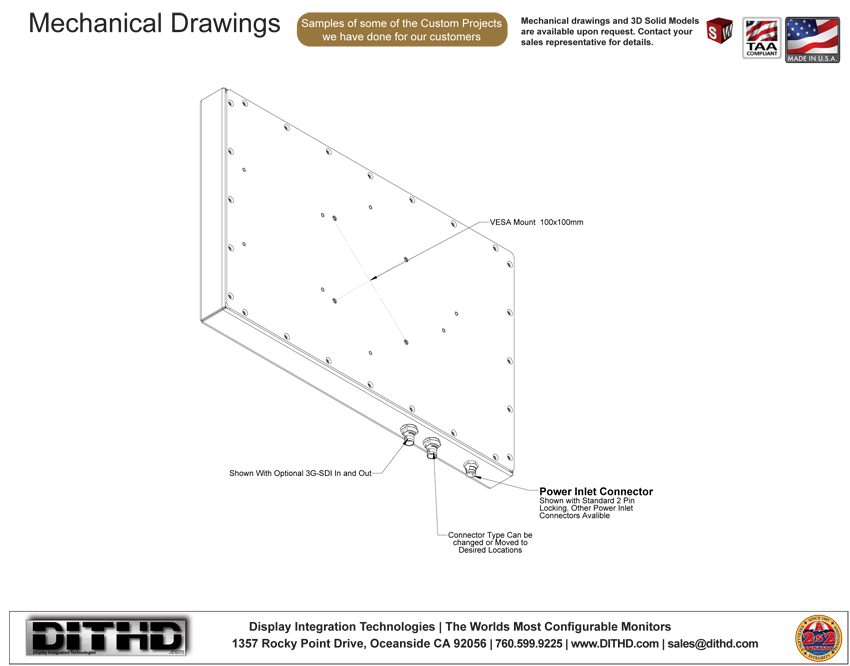

* Vesa 100mm x 100nn, M4 Hole Pattern
| Options |
|---|
| Multiple Lens Enhancement available Including: NVIS White or Green Backlight |
| 461G EMI Glass Enhancement |
| Side L Bracket, or Side Yoke Brackets |
| MIL PCAP and Resistive Touch Options |
| Video Controller Options |
|---|
| Power ON / OFF via Front Button |
| Power Mode Status LED Indicator |
| OSD (On Screen Display) Buttons |
