RD1U-CAT24xx

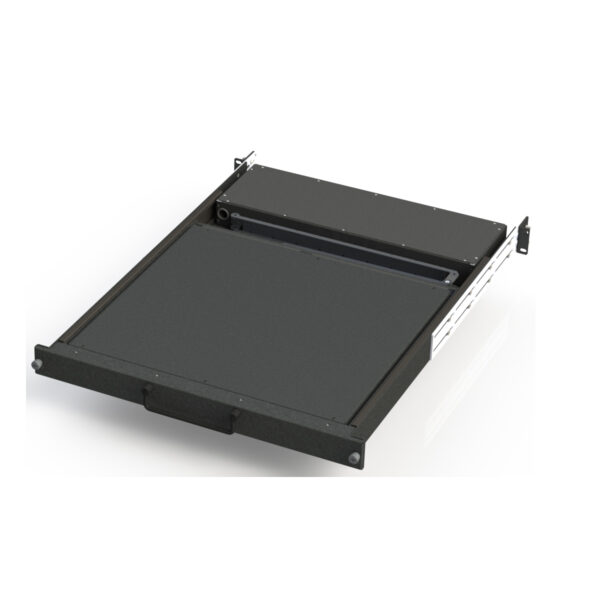

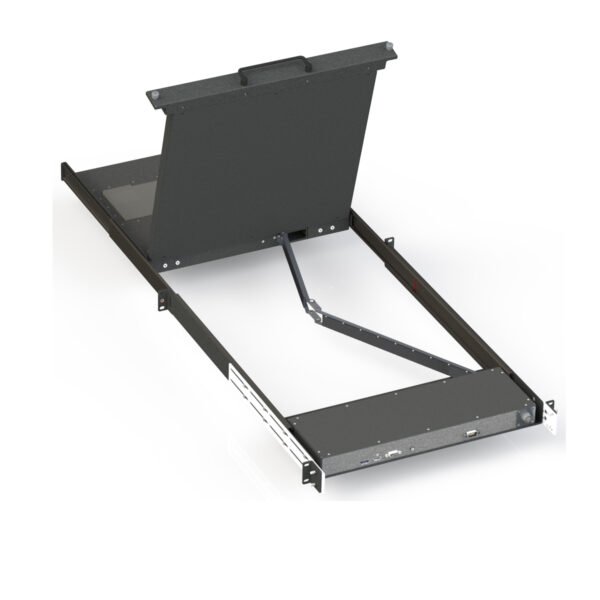

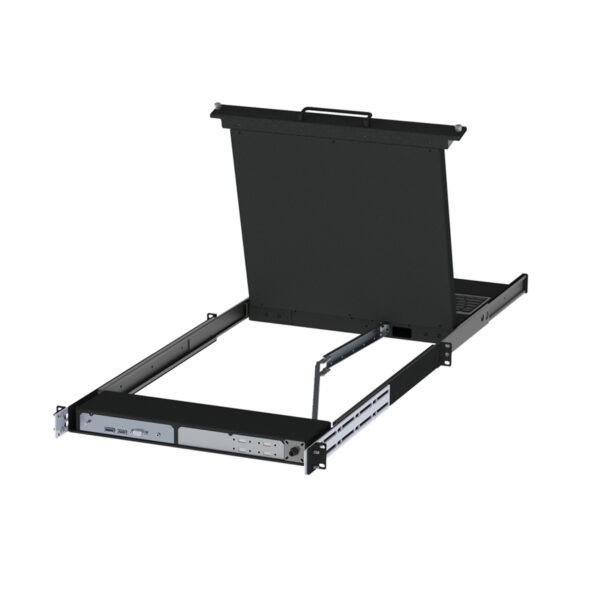

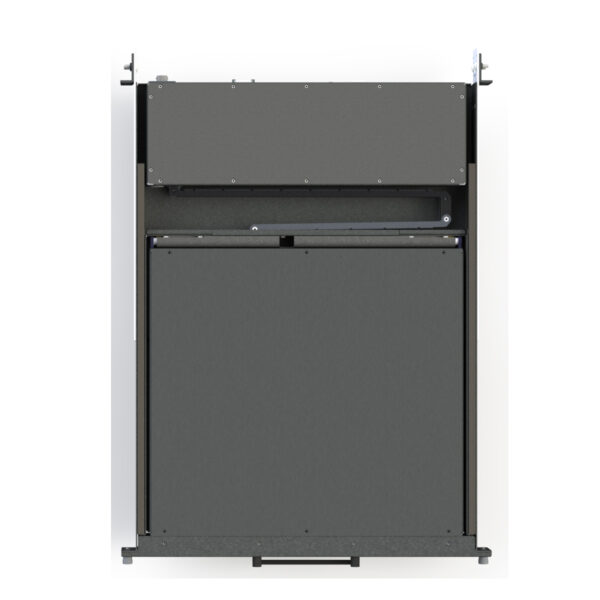

The RD1U-CAT24xx is a low profile 19” 1U, KVM Rack Drawer, Clamshell Design. It is our Most Configurable of all our KVM Rack Drawers. It comes with your choice of LCD Monitor Sizes, keyboard and pointer option, front face handles and latches, KVM Switch, and AD controller card. Other options include high bright panel, optical bonding lens, Resistive or PCAP Touch and CAC Card Reader.
Note : CAT20= Clamshell Aluminum Transit at 20″” Depth
Description
Features
- MIL-STD 810F/G Complaint
- VGA + HDMI + DP on Standard Back
- 1U Rackmount Monitors to Choose
-173W: 17.3” 1920 x1080 Resolution
-19LH: 19” 1280×1024 Resolution - Wide Operating Temperature
-173W: -0°C to +70°C
-19LH: -30°C to +85°C - CAC Card Reader available on Most Keyboards
- Locking Thumbscrew Front Face With Collapsible Handle
| Options | KVM Switch Options |
|---|---|
| High Bright and Optical Bonded LCD | D1: 4Port Display Port KVM Switch |
| Resistive or PCAP Touch | E2u: 8 Port VGA KVM Switch |
| Multiple Industrial Grade Controller Options | G2x: 4 Port DVI KVM Switch |
| Multiple Keyboard and Mouse/Pointer Options | O8.2: 8 Port HDMI KVM Switch |
| Multiple KVM Switch options to choose from | IPx: 8, 16, 32 Port RJ45 KVM Switch |
| DC 12V/24V/125V DC Power Input | |
| Multiple Power Inlet Connectors to chose from |
| LCD Panel Options | Keyboard Options |
|---|---|
| 19LH: 19” LED Backlit LCD w/ Anti-Glare | Qx: ikey 97-Key NEMA 4 Keyboard |
| 19HB: 19” LED Backlit LCD w/ Anti-Glare / High Bright | A2x: Cherry 89-Key Keyboard |
| 173W: 17.3” Wide LED Backlit LCD w/ Anti-Glare | I2u: TG3 82-Key Keyboard |
| 173HB: 17.3” Wide LED Backlit LCD w/ Anti-Glare / High Bright | Hx: iKey113-key NEMA 4X keyboard |
| 173U: 17.3 Wide LED Backlit LCD w/ Anti-Glare | Mx: Devlin 119-key keyboard |
| Video Controller Options |
|---|
| V33x: Rugged FHD Controller |
| V35x: Rugged Embedded Controller |
The DITHD MR19xx Series Military KVM Rack Drawer 1U Monitor is designed to meet stringent MIL-SPEC environmental standards. It comes equipped with a standard Chem Strengthened Anti-Glare Cover Lens, with optional features including 461G, EMI-ITO Glass Enhancement, optical bonding, high brightness, and MIL-SPEC touch functionality.
