PPC-EXP15L1
15” Core i5-6200U / DDR4 4G RAM/ 128G SSD/ Full Flat R-touch
Description
Features
* C1D2, C2D2, ATEX Zone 2, IECEx & EMC Class B Certified
* Intel® 6th Gen. Core i5 Processor
* 15” Fanless Panel PC for Wide Temp -20 ~ 60°C Environments
* LAN USB COM M16 (EX Ec) I.O. Up to 4 & Waterproof M12 USB COM (EX ic) I.S. Output

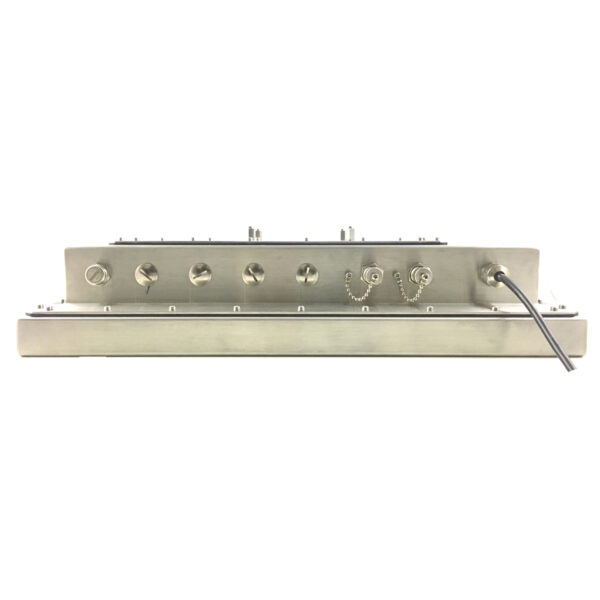

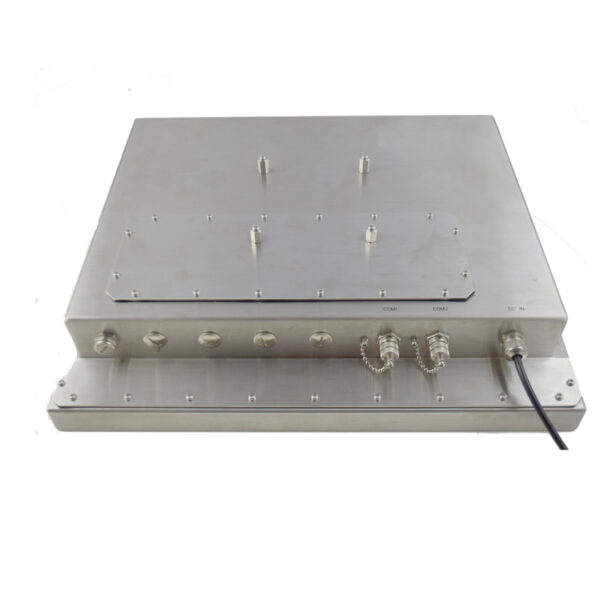

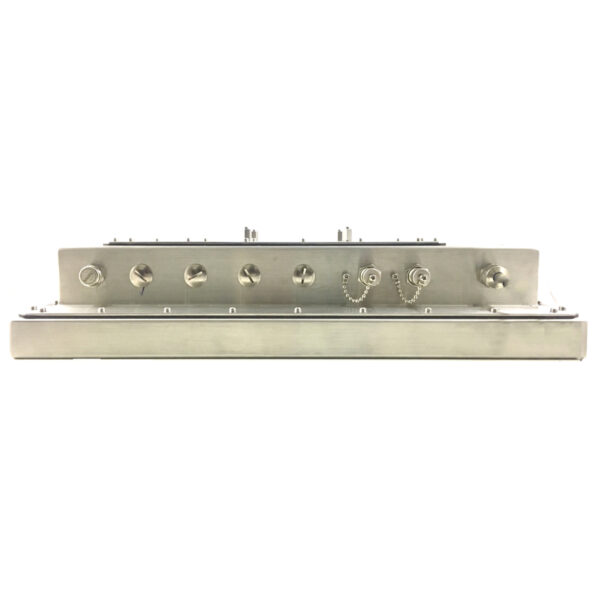

* Connector Panel for Easy Cable Installation
* Totally Sealed IP66 / NEMA 4X Enclosure
* 100% Water/Dust Proof Guarantee
Options
Wifi、IEEE802.11ac/b/g/n, Bluetooth Class1.0、2.0 (included in explosion proof certification, not co-existed with other mini-PCIe module)
Accessory
* COM extension cable kit through M16 cable gland (2 meter length, external 9pin male type) (cable kit must be installed by user)
* USB2.0 extension cable through M16 cable gland (2 meter length, external female type A) (cable kit must be installed by user)
* LAN extension cable through M16 cable gland (2 meter length, external female RJ45 type) (cable kit must be installed by user)
* Swappable M12 COM extension cable (2 meter length, M12 to PPC, external 9pin male type) (for configuration A,B/C)
* Swappable M12 USB2.0 port extension cable (0.3 meter length, M12 to PPC, external female type A connectors) (for configuration B/C, D)
* Swappable M12 DC power extension cable (1.2 meter length, M12, stripped and tinned wires on opposite end to DC 24V output power supply)
Customization
* Kit to support over 100 meter power supply length,
* Power on/off switch
* EtherNet/ IP (Industrial Protocol) Interface (temperature code condition is T4, not co-existed with other mini-PCIe module)
* PROFIBUS DP (process field bus decentralized peripherals)-slave Network Interface (temperature code condition is T4, not co-existed with other mini-PCIe module)
* DeviceNet-slave Interface (temperature code condition is T4, not co-existed with other mini-PCIe module)
* CC-Link (control & communication link)-slave interface (temperature code condition is T4, not co-existed with other mini-PCIe module)
* Panel mounting by bezel kit (not co-exist with wireless function)
* 50 meter DC cable to support 50 meter power length
* 100 meter DC cable to support 100 meter power length
* Wall mount/ Table mount bracket
