PDD1-T2420L

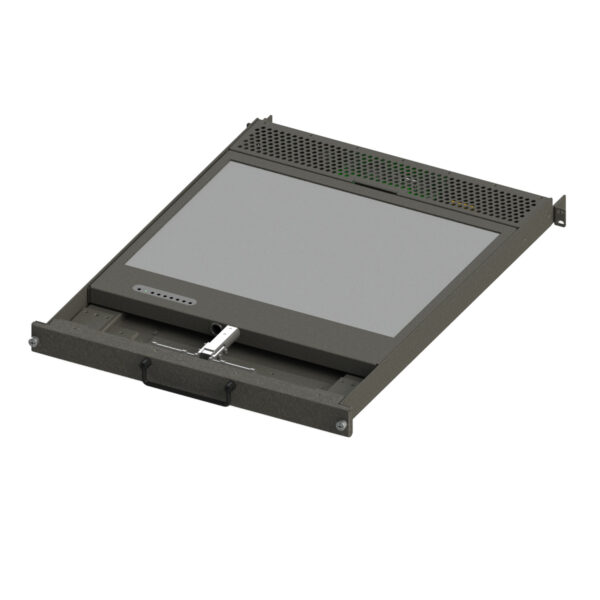

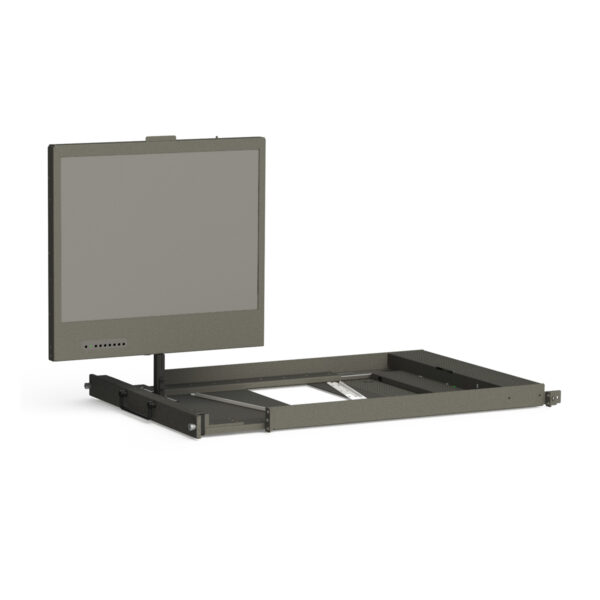

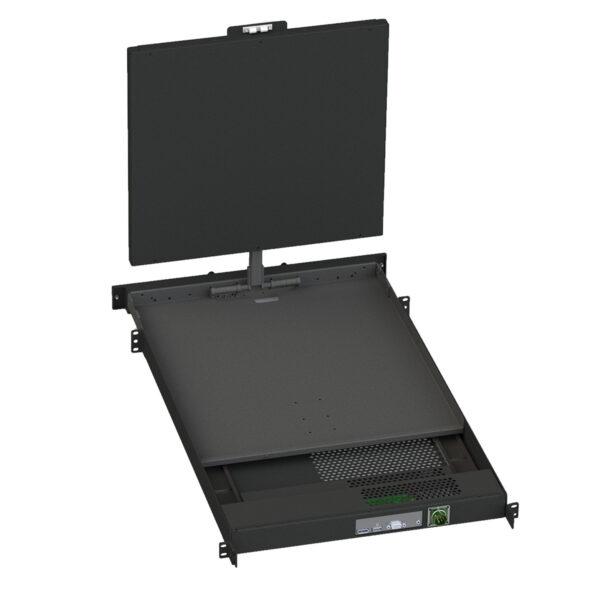

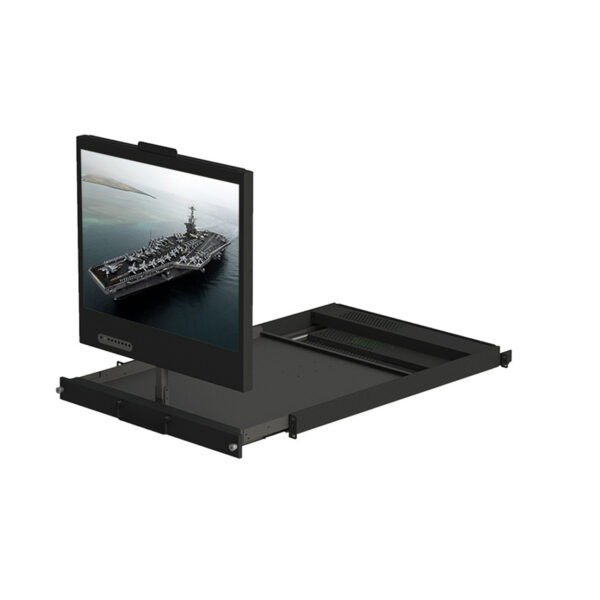

The PDD2-T20 Series is an high performance 1U LCD display drawer sporting a 17” or 19” LCD Monitor or optional 17.3” wide aspect LCD monitor. When needed the monitor slides out and the display portion of the monitor rotates up. You can adjust the monitor in almost any position from 0 to 125 Degrees. The Heavy-Duty Torque hinge holds it in place. Integrated Friction slides along with adjustable mounting arms allow installation in any standard 19” Rack enclosure. The drawer is held closed with a keyed cam lock or thumb screws.
Description
Features
* LED Backlit LCDs
– Available in 17.1”, 17.3”, 19” each size is available in HighBright
* Front Face
– Options include handles, speakers, locks, and thumbscrews
* Mounting Arms
– Adjustable configuration
* Heavy Duty Torque Hinge
* Integrated Slides
– Military Grade Friction Slides add infinite stopping positions
| Options | LCD Panel Options |
|---|---|
| All Aluminum Construction | 173W: FHD 17.3” Wide LED Backlit LCD w/ Anti-Glare 1920 x 1080 |
| Customizable Modular Design | 17L: SXGA LED Back Light 1280 x 1024 |
| Compact enclosure for Transit Case and Mobile applications. | 19L: SXGA 19” LED BackLit LCD 1280 x 1024 |
| Pivoting Display Drawer | |
| 0-125 Degree Pivot | |
| Undermount Design | |
| Intergrated Slides With Mounting Brackets |
| Video Controller Options | Front Face Options |
|---|---|
| V25X Embedded Controller | D8: Thumbscrew with 5” Collapsible Handle |
| V29X Embedded Controller | Da7: Thumbscrew w/ Flush Collapsible Handle & Speakers |
| V33X Controller | Da6: Thumbscrew w/ 7.5” Pull Handle & Speakers |
| Additional Front Face Options Available |
