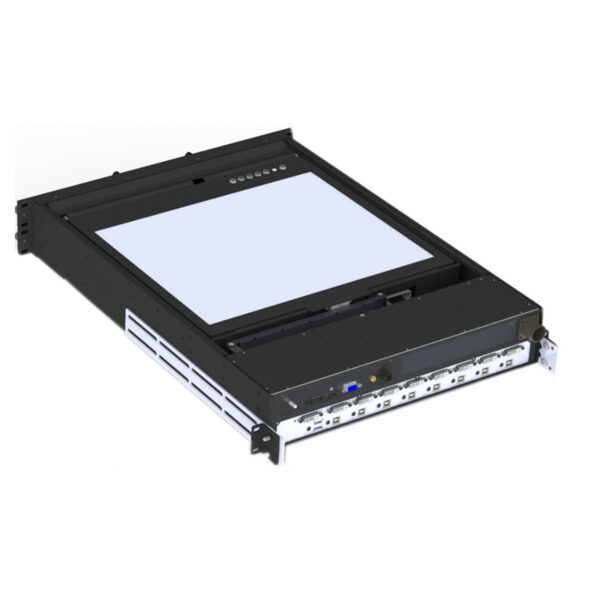

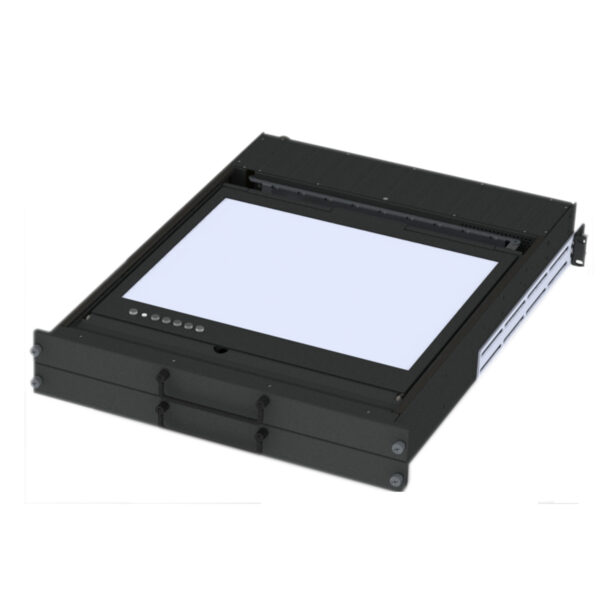

MR224xx
Our Military Rack drawer monitor MR224xx Series was designed from the ground up to meet the rugged environmental requirements. It comes standard with an EMI, ITO Lens. It’s Option include but are not limited to: Optical Bonding, High Bright and/or NVIS Backlight system, MIL Spec Touch and Heated Lens. It was Design To Meet (DTM) many MIL Spec standards off the shelf but if you have a specific standard you need met, we can customize it to any level. It is Built from 5052H32 and 6061T6 Aluminum that is Laser Cut and Milled to a precise standard. The internal Components Can be Conformal Coated for and extra level of protection. Its Specifically Designed for Rack Mount or Transit Case Applications. Exacting Precision has gone into every design feature of this unit to make it one of the best monitors in the industry, and worthy of becoming a true Military Rack monitor (MR series).
Note : Keybaord and Monitors Move Independently. S=Split
Description
Features
- MIL Spec Enhanced Monitor, For EMI Requirements
- Keyboard Moves Independent of Monitor
- Mil Spec Keyboard
- Multiple to Choose From
- Passive Cooled
- Conformal Coated Electronics
- Multiple Coating Options to Choose From
- Multiple Controller Cards and KVM Switches Options to Chose From Giving Flexibility to your I/O Needs.
- Integrated MIL Spec Rails
- C300 Friction Slides (Non Ball bearing)
- Milled Aluminum Telescoping
- Rear Arms With Reverse L
- Easy Install into Rack and Transit Case
- Mil Spec Power:
- Can Be Customized to your application
| Options |
|---|
| Multiple Lens Enhancement available Including: Heated Glass, NVIS Backlight |
| High Bright Daylight Viewable option |
| Optional conformal Coating |
| Optional Optical Bonding for Grade A Shock |
| PCAP Touch (May Effect EMI ) |

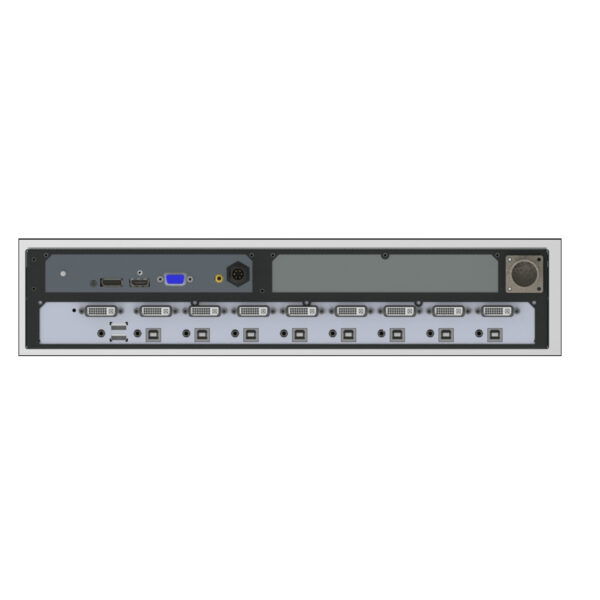

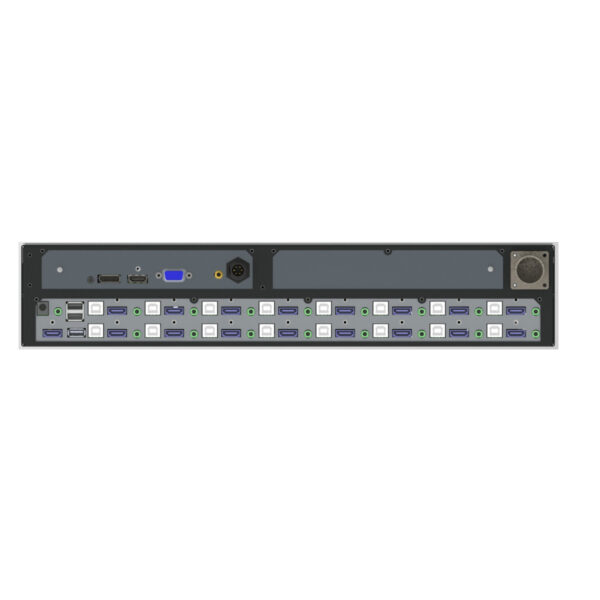

| KVM Switch Options | LCD Panel Options |
|---|---|
| 4, 8, 16 Port HDMI | 19M1: SXGA 1280x1024(Max Res) |
| 4, 8 Port DVI | 173M1: FHD 1920x1080 (Max Res) |
| 4, Port DP | 173M6: FHD 1920x1080 (Max Res) |
| 4, 8,16 Port VGA |
| Video Controller Options | Keyboard Options |
|---|---|
| V35 Embedded Controller (New) | M1 |
| Optional IR Remote and RS232 | M2 |
| Additional Controller Options Available | M3 |
| M4 | |
| M5 | |
| M7 |
