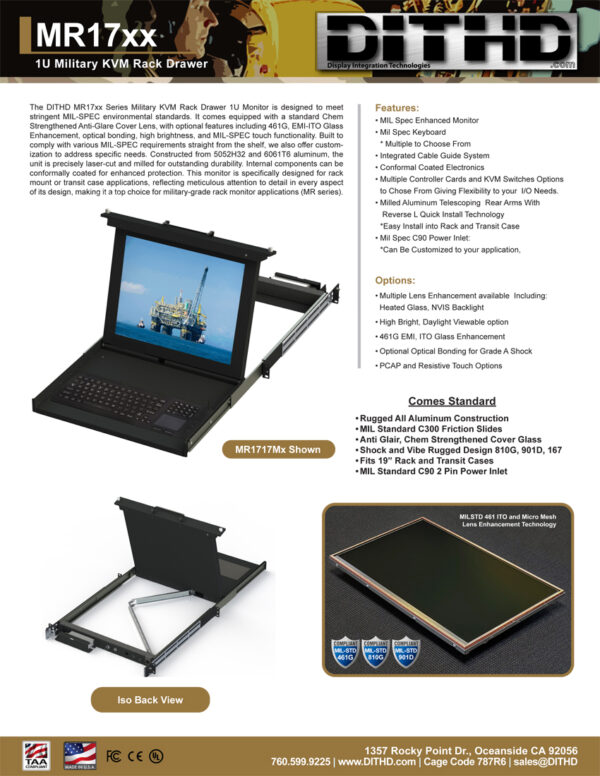

MR17xx

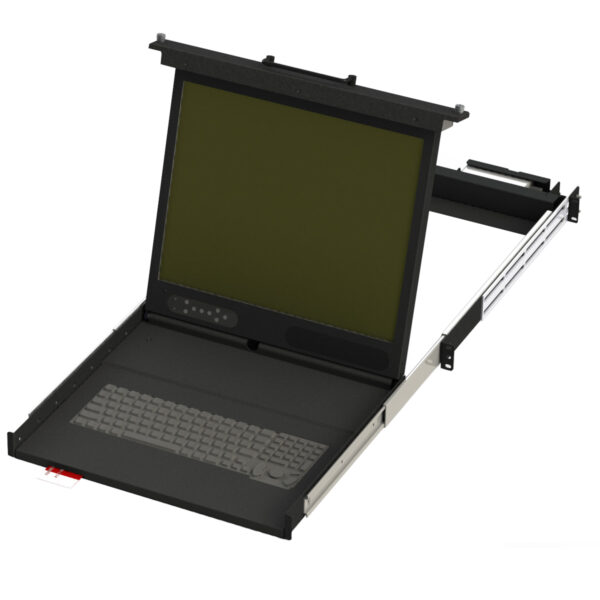

The DITHD MR17xx Series Military KVM Rack Drawer 1U Monitor is designed to meet stringent MIL-SPEC environmental standards. It comes equipped with a standard Chem Strengthened Anti-Glare Cover Lens, with optional features including 461G, EMI-ITO Glass Enhancement, optical bonding, high brightness, and MIL-SPEC touch functionality. Built to comply with various MIL-SPEC requirements straight from the shelf, we also offer customization to address specific needs. Constructed from 5052H32 and 6061T6 aluminum, the unit is precisely laser-cut and milled for outstanding durability. Internal components can be conformally coated for enhanced protection. This monitor is specifically designed for rack mount or transit case applications, reflecting meticulous attention to detail in every aspect of its design, making it a top choice for military-grade rack monitor applications (MR series).
Description
Features
- MIL Spec Enhanced Monitor
- Mil Spec Keyboard
- Multiple to Choose From
- Integrated Cable Guide System
- Conformal Coated Electronics
- Multiple Controller Cards and KVM Switches Options to Chose From Giving Flexibility to your I/O Needs.

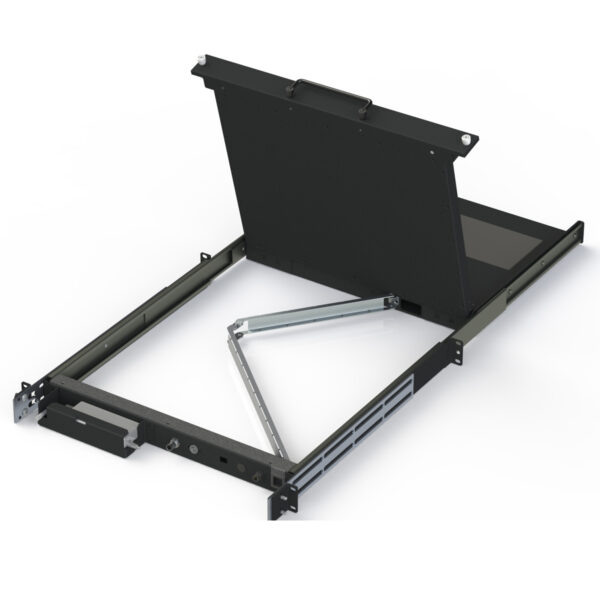

- Milled Aluminum Telescoping Rear Arms With Reverse L Quick Install Technology
- Easy Install into Rack and Transit Case
- Mil Spec C90 Power Inlet:
- Can Be Customized to your application,
| Options | Standard Configuration |
|---|---|
| Multiple Lens Enhancement available Including: | Rugged All Aluminum Construction |
| Heated Glass, NVIS Backlight | MIL Standard C300 Friction Slides |
| High Bright, Daylight Viewable option | Anti Glair, Chem Strengthened Cover Glass |
| 461G EMI Glass Enhancement | Shock and Vibe Rugged Design 810G, 901D, 167 |
| Optional Optical Bonding for Grade A Shock | Fits 19” Rack and Transit Cases |
| PCAP and Resistive Touch Options | MIL Standard C90 2 Pin Power Inlet" |
| KVM Switch Options | Video Controller Options |
|---|---|
| No KVM Switches | V35x: Rugged Embedded Controller |

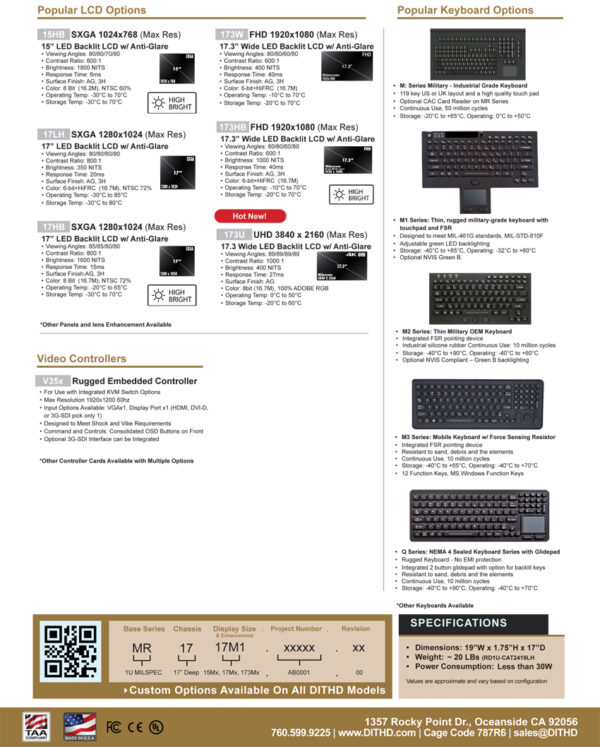

| LCD Panel Options | Keyboard Options |
|---|---|
| 15HB: 15” LED Backlit LCD w/ Anti-Glare / High Bright | M Series: Military - Industrial Grade Keyboard |
| 17LH: 17” LED Backlit LCD w/ Anti-Glare | M1 Series: Thin, rugged military-grade keyboard with touchpad and FSR |
| 17HB: 17” LED Backlit LCD w/ Anti-Glare / High Bright | M2 Series: Thin Military OEM Keyboard |
| 173W: 17.3” Wide LED Backlit LCD w/ Anti-Glare | M3 Series: Mobile Keyboard w/ Force Sensing Resistor |
| 173HB: 17.3” Wide LED Backlit LCD w/ Anti-Glare / High Bright | Q Series: NEMA 4 Sealed Keyboard Series with Glidepad |
| 173U: 17.3 Wide LED Backlit LCD w/ Anti-Glare" |
