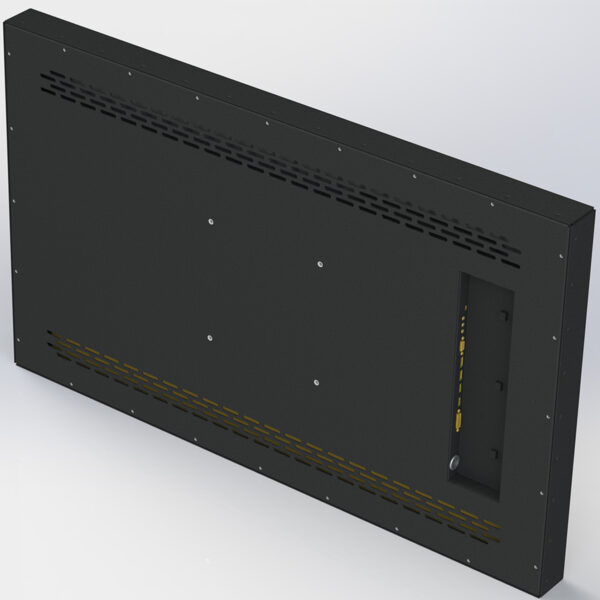

MM430Mx
Our Military Monitor was designed from the ground up to meet the rugged environmental requirements. It can be built with an IP67 Front Face with IP53 Back for general rugged used or full IP67 for sealed applications. It come standard with an Optically Bonded Lens. It has optional High Bright Backlit LCD Monitor, ITO, PCAP touch, Heated Lens, and NVIS Backlight system. It was design to meet many MIL Spec standards off the shelf but if you have a specific standard you need met. We can customize it to any level. It is Built from 5052H32 and 6061T6 Aluminum that is Laser Cut and Milled to a precise standard. The internal Components are Conformally Coated and each connection is protected with dielectric grease to prevent corrosion. Its Flex Mount system includes VESA, Panel Mount and Flush Mounting options. Exacting Precision has gone into every design feature of this unit to make it one of the best monitors in the industry, and worthy of becoming a true Military Monitor (MM).
Description
Features
* Welded & Milled Aluminum Housing
* Water Tight OSD Menu Membrane Switches
* Optically Bonded and High Bright LCD Screen
– Optional Lens Enhancements Available
* Forced Air Cooling
– IP65 Cover Shrouds Not Shown
– IP67 Optional Sealed Back Avalible
* Conformally Coated Electronics
– Multiple Coating Options to Choose From
* Multiple Controller Cards to Chose From Giving Flexibility to your I/O Needs.
* VESA Hole Positions
* Power Inlet Plate Design:
– Gives You Multiple Power Inlet Options
* Flex Mount Hole Pattern:
– Fits Direct Panel Mount,
– Rack Mount Options
– Flush Mount Cradle
* IP67 Mil Spec I/O Plate:
– Customizable Inputs
| Options | LCD Panel Options |
|---|---|
| Multiple Lens Enhanment avalible Including: ITO Mesh Lens, Heated Glass, NVIS Backlight, PCAP Touch | 430M1: UHD 43” LED Backlit LCD 3840x2160 |
| Optional Flex Mount Kits Avalible | 430M2: UHD 43” LED Backlit LCD 3840x2160 |
| Choice of conformal Coating Techniques | 430M3: UHD 43” LED Backlit LCD 3840x2160 |
| Video Controller Options |
|---|
| V28x High End 4K Controller |
| V34x High End 4K Controller |
| V36x Mid Grade 4K Controller |
| Video Input Options | |
|---|---|
| VGA | S-Video |
| DVI | 3G-SDI |
| HDMI | DisplayPort |
| YPbPr | Not all ports are available on all AD cards. |
| Composite | Check I/O for each Video Controller Offered |
