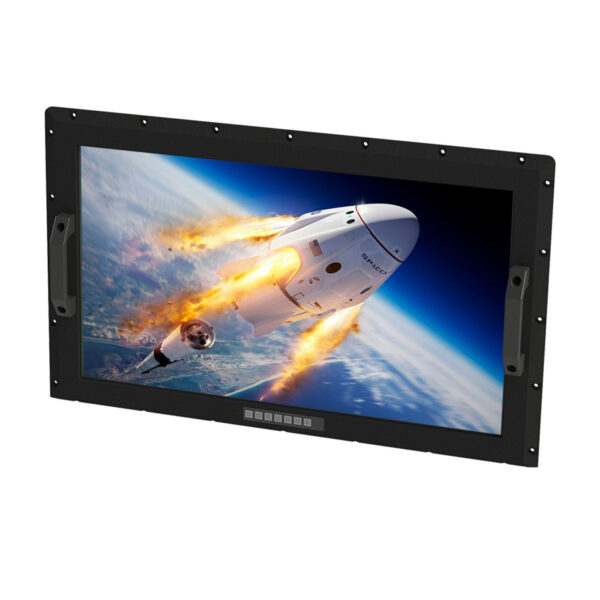

MD430Mx
Our Military Monitor MDxx Series was designed from the ground up to meet the rugged environ-mental requirements. It can be built with an IP65 Front Face with IP53 Back for general rugged used or full IP65 for sealed applications. It comes standard with an Optically Bonded ITO Lens. It has optional High Bright Backlit LCD Monitor, With Optional Heated Lens, and NVIS Backlight system. It was design to meet many MIL Spec standards off the shelf but if you have a specific standard you need met, We can customize it to any level. It is Built from 5052H32 and 6061T6 Aluminum that is Laser Cut and Milled to a precise standard. The internal Components are Conformally Coated and each connection is protected with dielectric grease to prevent corrosion. Internal Cabling is Low Smoke Zero Halogen Teflon Cabling. Its Spefically Design for Panel Mount Aplications with only a 3/8” Rise off its mounting surface. Exacting Precision has gone into every design feature of this unit to make it one of the best monitors in the industry, and worthy of becoming a true Military Monitor (MDseries).
Description
Features
* Welded & Milled Aluminum Housing
* Water Tight OSD Menu Membrade Switches
* ITO Optically Bonded Front Lens
– Optional Lens Enhancments Avalible
* Passive Air Cooled
– IP67 Optional Sealed Back Avalible
* Conformally Coated Electronics
– Multiple Coating Options to Choose From
* Multiple Controller Cards to
– Chose From Giving Flexiblity to your I/O Needs.
* VESA Hole Positions
* Power Supply Plate:
– Field Servicabale Power Supply
* Panel Mount Hole Pattern: Can Be Customized to your aolication
* IP67 Mil Spec I/O Plate: Customizable Inputs
| Options |
|---|
| Multiple Lens Enhanment avalible |
| Including: ITO Mesh Lens, Heated Glass, NVIS Backlight |
| Optional Flex Mount Kits Avalible |
| Choice of conformal Coating Techniques |
| Video Controller Options |
|---|
| V38x High End 4K Controller (Production) Max Resolution: 4096 x 2160 |
| V36x Mid Grade 4K Controller (New) |
