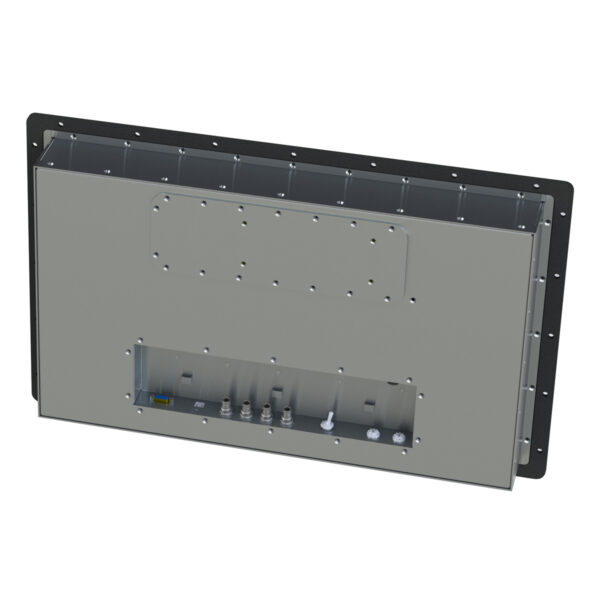

MD238Mx
Our Military Monitor MD238Mx Series was designed from the ground up to meet the rugged environmental requirements. It can be built with an IP67 Front Face with IP53 Back for general rugged used or full IP67 with Mil Spec Circular Connectors for sealed applications. It comes standard with an EMI ITO Lens. It has optional Optical Bonding and also High Bright Backlit LCD Monitor, With Optional Heated Lens, and NVIS Backlight system. It was Design To Meet (DTM) many MIL Spec standards off the shelf but if you have a specific standard you need met, We can customize it to any level. It is Built from 5052H32 and 6061T6 Aluminum that is Laser Cut and Milled to a precise standard. The internal Components Can be Conformally Coated for and extra level of protection. Internal Cabling is Low Smoke Zero Halogen Teflon Cabling. Its Spefically Design for Panel Mount Aplications with Milled Aluminumfront face that rises only a 1/2” off its mounting surface. Exacting Precision has gone into every design feature of this unit to make it one of the best monitors in the industry, and worthy of becoming a true Military Monitor (MDseries).
Description
Features
* Welded & Milled Aluminum Housing
* Water Tight OSD Menu Membrade Switches
* ITO Front Lens
-Optional Lens Enhancments Avalible
* Passive Cooled
-IP67 Optional Sealed Back Avalible
* Conformally Coated Electronics
-Multiple Coating Options to Choose From
* Multiple Controller Cards to
-Chose From Giving Flexiblity to your I/O Needs.
* VESA Hole Positions for ExpantionModules
* Power Supply Plate:Field Servicabale Power Supply
* Panel Mount Hole Pattern:Can Be Customized to your aolication,
* IP67 Mil Spec I/O Plate: Customizable Inputs
| Options | Standard Configuration |
|---|---|
| Multiple Lens Enhanment avalible | Rugged All Aluminum Construction |
| Including: Heated Glass, NVIS Backlight | May include Rear VESA Pattern for addon equipment such as Fiber Channel |
| High Bright Daylight Viewable option | Laminated, 461 EMI, ITO Glass Enhancment |
| Optional conformal Coating | IP67 Front Face Design |
| Optional Optical Bonding for Grade A Shock | 6061 T6 Milled Aluminum Front Face |
| PCAP Touch (May Effect EMI |
| Video Controller Options |
|---|
| V38x High End 4K Controller (Production) |
| V36x Mid Grade 4K Controller |
